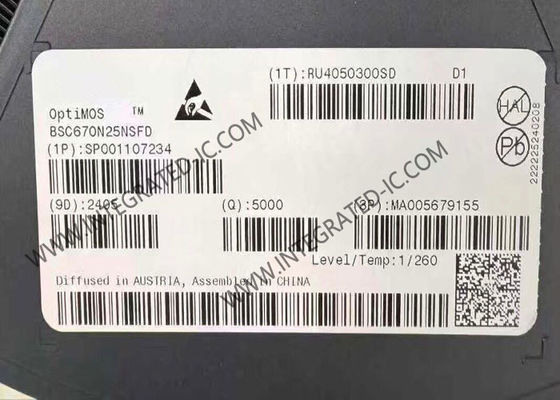

BSC670N25NSFD Integrated Circuit Chip 250V N-Channel Power MOSFET Transistors PG-TDSON-8

BSC670N25NSFD Integrated Circuit Chip 250V N-Channel Power MOSFET Transistors PG-TDSON-8
BSC670N25NSFD Integrated Circuit Chip 250V N-Channel Power MOSFET Transistors PG-TDSON-8

Large Image :  BSC670N25NSFD Integrated Circuit Chip 250V N-Channel Power MOSFET Transistors PG-TDSON-8

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BSC670N25NSFD
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-TDSON-8
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

BSC670N25NSFD Integrated Circuit Chip 250V N-Channel Power MOSFET Transistors PG-TDSON-8

Description
Part Number: BSC670N25NSFD Series: OptiMOS™
Drain To Source Voltage (Vdss): 250 V Gate Charge (Qg) (Max) @ Vgs: 30 NC @ 10 V
Power Dissipation (Max): 150W (Tc) Operating Temperature: -55°C ~ 175°C (TJ)

BSC670N25NSFD Integrated Circuit Chip 250V N-Channel Power MOSFET Transistors PG-TDSON-8​



Product Description Of BSC670N25NSFD

BSC670N25NSFD is 250V, OptiMOS™ N-Channel Power MOSFET Transistors in PG-TDSON-8 package.
OptiMOS™ Fast Diode (FD) 200V, 250V and 300V is optimized for body diode hard commutation. These devices are the perfect choice for hard switching applications such as telecom, industrial power supplies, Class D audio amplifiers, motor control and DC-AC inverter.


Specification Of BSC670N25NSFD

Series
OptiMOS™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Discontinued at Digi-Key
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
250 V
Current - Continuous Drain (Id) @ 25°C
24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
67mOhm @ 24A, 10V
Vgs(th) (Max) @ Id
4V @ 90µA
Gate Charge (Qg) (Max) @ Vgs
30 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
2410 pF @ 125 V
Power Dissipation (Max)
150W (Tc)
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
PG-TDSON-8-1
Package / Case
8-PowerTDFN


Features Of BSC670N25NSFD

N-channel, Normallevel
175°C rated
Excellent gate charge x RDS(on) product(FOM)
Very low on-resistance RDS(on)
Improved hard commutation ruggedness
Optimized hard switching behavior
Industry’s lowest R ds(on)
RoHS compliant - halogen free



Applications Of BSC670N25NSFD

DC-DC converter 48 V-12 V
