TLE6228GP Integrated Circuit Chip Smart Quad Channel Low-Side Switch with 3 A Output Current 350 mOhms On Resistance and -40°C to +150°C Operating Temperature

Large Image : TLE6228GP Integrated Circuit Chip Smart Quad Channel Low-Side Switch with 3 A Output Current 350 mOhms On Resistance and -40°C to +150°C Operating Temperature

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TLE6228GP

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	DSO-22
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

TLE6228GP Integrated Circuit Chip Smart Quad Channel Low-Side Switch with 3 A Output Current 350 mOhms On Resistance and -40°C to +150°C Operating Temperature

Description

Part Number:	TLE6228GP	Number Of Outputs::	4 Output
Output Current::	3 A	On Resistance - Max::	350 MOhms
Minimum Operating Temperature::	- 40 C	Maximum Operating Temperature::	+ 150 C
Highlight:	3 A Output Current Integrated Circuit Chip , 350 mOhms On Resistance Low-Side Switch , -40°C to +150°C Operating Temperature Smart Power Technology

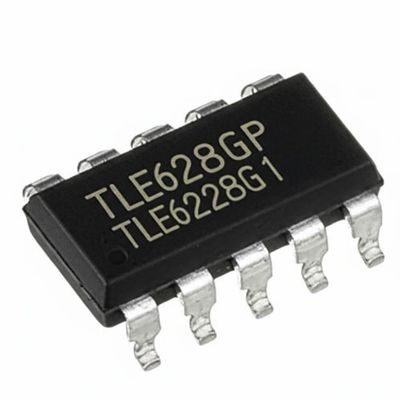

TLE6228GP Integrated Circuit Chip Smart Quad Channel Low-Side Switch DSO-22

Product Description

TLE6228GP is quad channel Low-Side-Switch (2x5A/2x3A) in Smart Power Technology (SPT) with four separate inputs and four open drain DMOS output stages. TLE6228GP is fully protected by embedded protection functions and designed for automotive and industrial applications. Each channel has its own status signal for diagnostic feedback, making it particularly suitable for ABS or Powertrain Systems.

Specifications

Number of Outputs	4
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.8V ~ 32V
Voltage - Supply (Vcc/Vdd)	Not Required
Rds On (Typ)	230mOhm, 280mOhm
Input Type	Non-Inverting
Fault Protection	Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)

Features

Shorted Circuit Protection
Overtemperature Protection
Overvoltage Protection
Parallel Control of the Inputs (PWM Applications)
Separate Diagnostic Pin for Each Channel
Power - SO 20 - Package with integrated cooling area
Standby mode with low current consumption
µC compatible Input
Electrostatic Discharge (ESD) Protection
Green Product (RoHS compliant)
AEC qualified

Applications

All kinds of resistive and inductive loads (relays, electromagnetic valves)
µC compatible power switch for 12 and 24 V applications
Solenoid control switch in automotive and industrial control systems
Robotic Controls
