TPS25200QDRVRQ1 Integrated Circuit Chip Automotive eFuse WSON6 Electronic Fuse Regulator

TPS25200QDRVRQ1 Integrated Circuit Chip Automotive eFuse WSON6 Electronic Fuse Regulator
TPS25200QDRVRQ1 Integrated Circuit Chip Automotive eFuse WSON6 Electronic Fuse Regulator

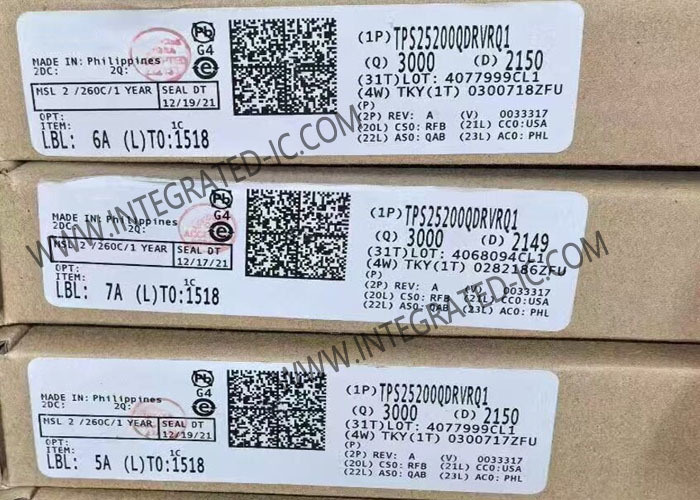

Large Image :  TPS25200QDRVRQ1 Integrated Circuit Chip Automotive eFuse WSON6 Electronic Fuse Regulator

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS25200QDRVRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WSON-6
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

TPS25200QDRVRQ1 Integrated Circuit Chip Automotive eFuse WSON6 Electronic Fuse Regulator

Description
Part Number: TPS25200QDRVRQ1 Current Limit: 2.7 A
Operating Supply Current: 147 UA Number Of Channels: 1 Channel
Operating Temperature: -40°C ~ 125°C (TJ) Product Category: Hot Swap Voltage Controllers

TPS25200QDRVRQ1 Integrated Circuit Chip Automotive eFuse WSON6 Electronic Fuse Regulator​



Product Description Of TPS25200QDRVRQ1

TPS25200QDRVRQ1 is a 5V eFuse with a precision current-limit and overvoltage clamp. The device provides robust protection for load and source during overvoltage and overcurrent events.
TPS25200QDRVRQ1 is an intelligent protected load-switch with a VIN value tolerant to 20 V. In the event that an incorrect voltage is applied at the IN pin, the output clamps to 5.4 V to protect the load. If the voltage at the IN pin exceeds 7.6 V, the device disconnects the load to prevent damage to the device, load, or both.


Specification Of TPS25200QDRVRQ1

Function
Electronic Fuse
Accuracy
±6.3%
Voltage - Input
2.5V ~ 6.5V
Current - Output
2.4A
Operating Temperature
-40°C ~ 125°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Package / Case
6-WDFN Exposed Pad
Supplier Device Package
6-WSON (2x2)


Features Of TPS25200QDRVRQ1

2.5V to 6.5V Operation
20V Continuous VIN (Absolute Maximum)
7.6V Input Overvoltage Shutoff
5.25V to 5.55V Fixed Overvoltge Clamp
0.6µs Overvoltage Lockout Response
3.5µs Short-Circuit Response
67mΩ High-Side MOSFET
Accurate 2.5A Minimum, 2.9A Maximum and 2.1A Minimum, 2.5A Maximum Setting (Including Resistor)
±6.3% Current-Limit Accuracy at 2.7A
Reverse Current Blocking While Disabled
Built-in Soft Start
Pin-to-Pin Compatible with TPS2553


Applications Of TPS25200QDRVRQ1

Automotive USB Port Protection
USB Power Switch
USB Slave Devices
