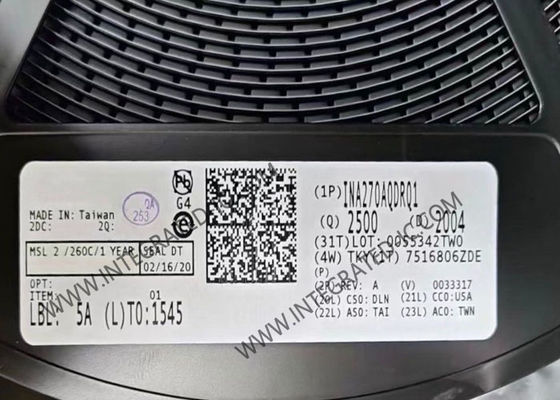

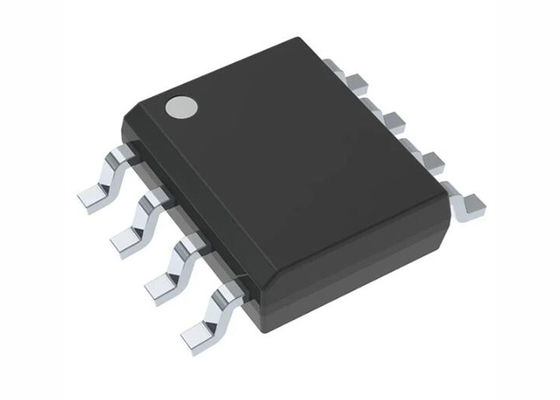

INA270AQDRQ1 Current Sense Amplifier Integrated Circuit Chip with 130 kHz Bandwidth and Wide Common-Mode Range -16V to +80V in SOIC8 Package

INA270AQDRQ1 Current Sense Amplifier Integrated Circuit Chip with 130 kHz Bandwidth and Wide Common-Mode Range -16V to +80V in SOIC8 Package
INA270AQDRQ1 Current Sense Amplifier Integrated Circuit Chip with 130 kHz Bandwidth and Wide Common-Mode Range -16V to +80V in SOIC8 Package INA270AQDRQ1 Current Sense Amplifier Integrated Circuit Chip with 130 kHz Bandwidth and Wide Common-Mode Range -16V to +80V in SOIC8 Package

Large Image :  INA270AQDRQ1 Current Sense Amplifier Integrated Circuit Chip with 130 kHz Bandwidth and Wide Common-Mode Range -16V to +80V in SOIC8 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: INA270AQDRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

INA270AQDRQ1 Current Sense Amplifier Integrated Circuit Chip with 130 kHz Bandwidth and Wide Common-Mode Range -16V to +80V in SOIC8 Package

Description
Part Number: INA270AQDRQ1 Operating Supply Current: 950 UA
Bandwidth: 130 KHz Vos - Input Offset Voltage: 2.5 MV
Voltage - Input: -16V ~ 80V Operating Temperature: -40°C ~ 125°C
Highlight:

INA270AQDRQ1

,

INA270AQDRQ1 Integrated Circuit Chip

,

SOIC8 Current-Shunt Monitors

INA270AQDRQ1 Integrated Circuit Chip Current Sense Amplifier SOIC8 Current-Shunt Monitors
Product Description
The INA270AQDRQ1 is a current-shunt monitor with voltage output that can sense voltage drops across current shunts at common-mode voltages from -16V to +80V, independent of the supply voltage. The pinouts are optimized for easy filtering implementation.
Available with two output voltage scales (14 V/V and 20 V/V), this device features a 130-kHz bandwidth for simplified use in current-control loops. It operates from a single 2.7V to 18V supply, with maximum supply current of 900 µA. The INA270AQDRQ1 is specified for extended operating temperatures from -40°C to +125°C and comes in an SOIC-8 package.
Specifications
Function Current Monitor
Sensing Method High-Side
Accuracy ±1%
Voltage - Input -16V ~ 80V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Key Features
  • Pinout optimized for external filtering
  • Wide common-mode range: -16V to +80V
  • High accuracy specifications:
    • CMRR: 120 dB
    • ±2.5-mV offset (maximum)
    • ±1% gain error (maximum)
    • 20-μV/°C offset drift (maximum)
    • 55-ppm/°C gain drift (maximum)
  • Bandwidth: Up to 130 kHz
  • Two gain options available: 14 V/V (INA270A-Q1) and 20 V/V (INA271A-Q1)
  • Low quiescent current: 900 μA (maximum)
  • Power supply range: 2.7V to 18V
  • Package: SOIC-8
Applications
  • Electric Power Steering (EPS) Systems
  • Body Control Modules
  • Brake Systems
  • Electronic Stability Control (ESC) Systems
