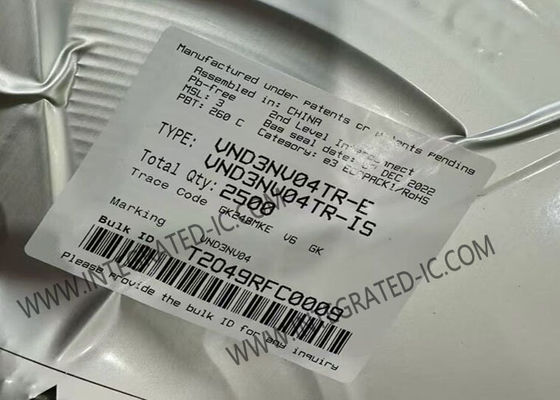

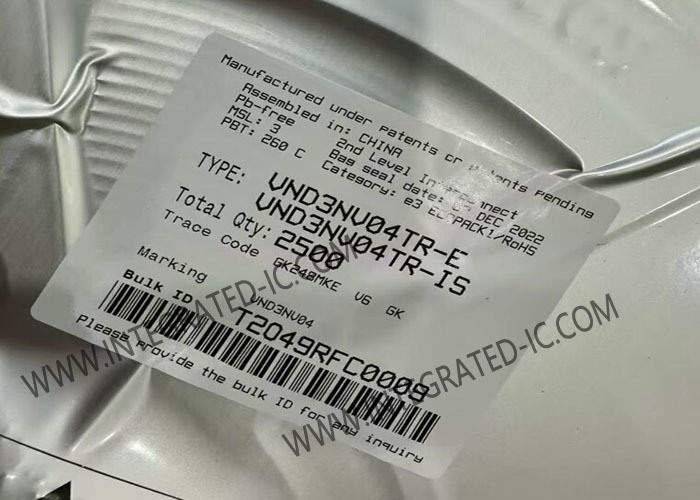

VND3NV04TR Integrated Circuit Chip Low Side Switches 3.5A OMNIFET II Power MOSFET

VND3NV04TR Integrated Circuit Chip Low Side Switches 3.5A OMNIFET II Power MOSFET
VND3NV04TR Integrated Circuit Chip Low Side Switches 3.5A OMNIFET II Power MOSFET

Large Image :  VND3NV04TR Integrated Circuit Chip Low Side Switches 3.5A OMNIFET II Power MOSFET

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: VND3NV04TR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-252-2
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

VND3NV04TR Integrated Circuit Chip Low Side Switches 3.5A OMNIFET II Power MOSFET

Description
Part Number: VND3NV04TR Type: Low-Side
Output Current: 3.5 A Supply Voltage - Max: 36 V
Operating Supply Current: 100 UA Pd - Power Dissipation: 35 W
Highlight:

VND3NV04TR integrated circuit chip

,

OMNIFET II power MOSFET

,

low side switches 3.5A

VND3NV04TR Integrated Circuit Chip Low Side Switches 3.5A OMNIFET II Power MOSFET
Product Description

VND3NV04TR is monolithic devices designed in VIPower™ M0-3 Technology, intended for replacement of standard Power MOSFETs from DC up to 50 kHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments.

Specifications
Series OMNIFET II™, VIPower™
Switch Type General Purpose
Number of Outputs 1
Ratio - Input:Output 1:1
Output Configuration Low Side
Output Type N-Channel
Interface On/Off
Voltage - Load 36V (Max)
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 3.5A
Rds On (Typ) 120mOhm (Max)
Input Type Non-Inverting
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package DPAK
Package / Case TO-252-3, DPAK (2 Leads + Tab), SC-63
Features
  • Linear current limitation
  • Thermal shutdown
  • Short circuit protection
  • Integrated clamp
  • Low current drawn from input pin
  • Diagnostic feedback through input pin
  • ESD protection
  • Direct access to the gate of the Power MOSFET (analog driving)
