VIPER17LN Integrated Circuit Chip Off-Line Converter with 800 V Rugged Power Section 60 kHz Switching Frequency and Standby Power < 30 mW

VIPER17LN Integrated Circuit Chip Off-Line Converter with 800 V Rugged Power Section 60 kHz Switching Frequency and Standby Power < 30 mW
VIPER17LN Integrated Circuit Chip Off-Line Converter with 800 V Rugged Power Section 60 kHz Switching Frequency and Standby Power < 30 mW VIPER17LN Integrated Circuit Chip Off-Line Converter with 800 V Rugged Power Section 60 kHz Switching Frequency and Standby Power < 30 mW

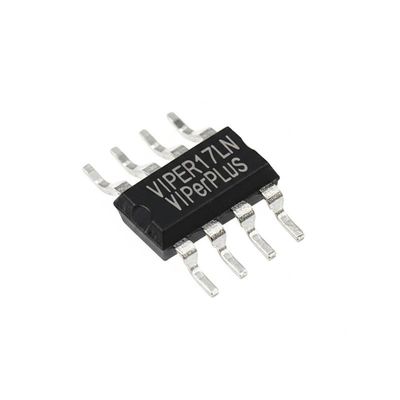

Large Image :  VIPER17LN Integrated Circuit Chip Off-Line Converter with 800 V Rugged Power Section 60 kHz Switching Frequency and Standby Power < 30 mW

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: VIPER17LN
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: DIP-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

VIPER17LN Integrated Circuit Chip Off-Line Converter with 800 V Rugged Power Section 60 kHz Switching Frequency and Standby Power < 30 mW

Description
Part Number: VIPER17LN Output Voltage: 800 V
Output Power: 9 W Switching Frequency: 60 KHz
Duty Cycle - Max: 80 % Operating Supply Current: 1.8 MA
Highlight:

800 V rugged power section Integrated Circuit Chip

,

60 kHz switching frequency Off-Line Converter

,

Standby power < 30 mW VIPerPlus

VIPER17LN Integrated Circuit Chip Off-Line Converter VIPerPlus 60kHz High Voltage Converter
Product Description
The VIPER17LN is an off-line converter featuring an 800V rugged power section with PWM control. It includes two levels of overcurrent protection, overvoltage and overload protections, hysteresis thermal protection, soft-start, and safe auto-restart after fault condition removal. The burst mode operation and low power consumption meet standby energy saving regulations.
Specifications
Series VIPerPlus
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 800V
Topology Flyback
Voltage - Start Up 14 V
Voltage - Supply (Vcc/Vdd) 8.5V ~ 23.5V
Duty Cycle 70%
Frequency - Switching 60kHz
Power (Watts) 10 W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Operating Temperature -40°C ~ 150°C (TJ)
Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package 8-DIP
Mounting Type Through Hole
Key Features
  • 800V avalanche rugged power section
  • PWM operation with frequency jittering for low EMI
  • Operating frequency: 60 kHz for L type, 115 kHz for H type
  • Standby power < 30 mW at 265 VAC
  • Limiting current with adjustable set point
  • Adjustable and accurate overvoltage protection
  • On-board soft-start
  • Safe auto-restart after a fault condition
  • Hysteresis thermal shutdown
Applications
Adapters for: PDA, camcorders, shavers, cellular phones, videogames
Auxiliary power supply for: LCD/PDP TV, monitors, audio systems, computers, industrial systems, LED drivers
SMPS for: set-top boxes, DVD players and recorders, white goods
