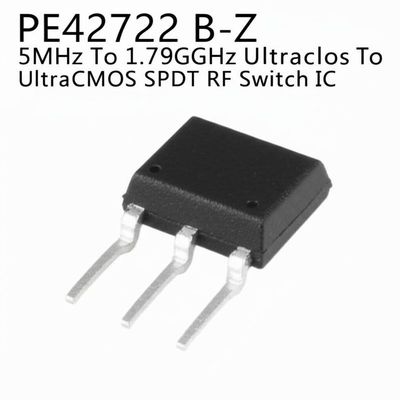

PE42722B-Z UltraCMOS SPDT RF Switch IC Wireless Communication Module 5MHz to 1.794GHz with Low Insertion Loss and High Isolation

PE42722B-Z UltraCMOS SPDT RF Switch IC Wireless Communication Module 5MHz to 1.794GHz with Low Insertion Loss and High Isolation
PE42722B-Z UltraCMOS SPDT RF Switch IC Wireless Communication Module 5MHz to 1.794GHz with Low Insertion Loss and High Isolation PE42722B-Z UltraCMOS SPDT RF Switch IC Wireless Communication Module 5MHz to 1.794GHz with Low Insertion Loss and High Isolation

Large Image :  PE42722B-Z UltraCMOS SPDT RF Switch IC Wireless Communication Module 5MHz to 1.794GHz with Low Insertion Loss and High Isolation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: PE42722B-Z
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-32
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

PE42722B-Z UltraCMOS SPDT RF Switch IC Wireless Communication Module 5MHz to 1.794GHz with Low Insertion Loss and High Isolation

Description
Part Number: PE42722B-Z Switch Configuration: SPDT
Insertion Loss: 0.85 DB Off Isolation - Typ: 29 DB
Voltage - Supply: 2.3V ~ 5.5V Operating Temperature: -40°C ~ 85°C
Highlight:

5MHz to 1.794GHz RF Switch IC

,

Low Insertion Loss Wireless Communication Module

,

High Isolation UltraCMOS SPDT Switch

PE42722B-Z Wireless Communication Module 5MHz To 1.794GHz UltraCMOS SPDT RF Switch IC
Product Description

The PE42722B-Z is a HaRP™ technology-enhanced reflective SPDT RF switch designed for cable applications including DOCSIS 3.0/1 cable modem and set-top box. It delivers high linearity and excellent harmonics performance in the 5-1794 MHz band, featuring low insertion loss and high isolation performance ideal for DOCSIS 3.1 applications.

Specifications
RF Type General Purpose
Topology Reflective
Circuit SPDT
Frequency Range 5MHz ~ 1.794GHz
Isolation 29dB
Insertion Loss 0.85dB
Test Frequency 1.794GHz
Features DC Blocked
Impedance 75Ohm
Voltage - Supply 2.3V ~ 5.5V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Key Features
Supports DOCSIS 3.0/1 requirements
Exceptional harmonics performance
- 2fo of -117 dBc @ 170 MHz
- 3fo of -134 dBc @ 170 MHz
Best in class linearity across frequency band
Low insertion loss and high isolation performance
- Insertion loss of 0.3 dB @ 1218 MHz
- Isolation of 50 dB @ 204 MHz
High ESD performance of 1.5 kV HBM
Packaging - 32-lead 5 * 5 mm QFN
Applications
Broadband market (DOCSIS 3.0/1)
- Cable modem
- Set-top box
Filter bank switching
Relay replacement to switch between DOCSIS 3.0 and DOCSIS 3.1 configurations
