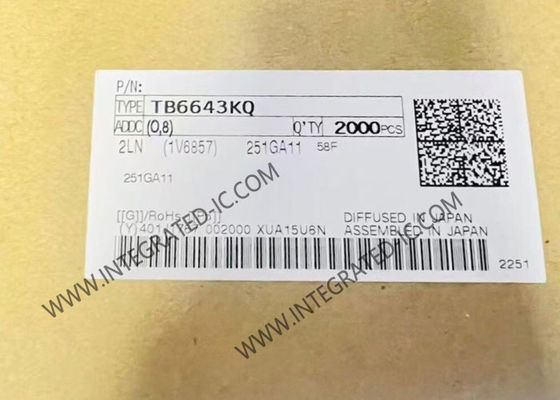

TB6643KQ Integrated Circuit Chip Full-Bridge DC Motor Driver IC with 1.5 A Output Current and 10 V to 45 V Load Voltage

TB6643KQ Integrated Circuit Chip Full-Bridge DC Motor Driver IC with 1.5 A Output Current and 10 V to 45 V Load Voltage
TB6643KQ Integrated Circuit Chip Full-Bridge DC Motor Driver IC with 1.5 A Output Current and 10 V to 45 V Load Voltage TB6643KQ Integrated Circuit Chip Full-Bridge DC Motor Driver IC with 1.5 A Output Current and 10 V to 45 V Load Voltage

Large Image :  TB6643KQ Integrated Circuit Chip Full-Bridge DC Motor Driver IC with 1.5 A Output Current and 10 V to 45 V Load Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TB6643KQ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HSIP-7
Delivery Time: 3-5 work days
Payment Terms: TT
Supply Ability: 10000 Pieces per Day
Contact Now

TB6643KQ Integrated Circuit Chip Full-Bridge DC Motor Driver IC with 1.5 A Output Current and 10 V to 45 V Load Voltage

Description
Part Number: TB6643KQ Output Current:: 1.5 A
Operating Supply Current:: 2.5 MA Minimum Operating Temperature:: - 40 C
Maximum Operating Temperature:: + 85 C Load Voltage Rating:: 10 V To 45 V
Highlight:

TB6643KQ Integrated Circuit Chip

,

1.5 A Output Current DC Motor Driver IC

,

10 V to 45 V Load Voltage Full-Bridge Driver IC

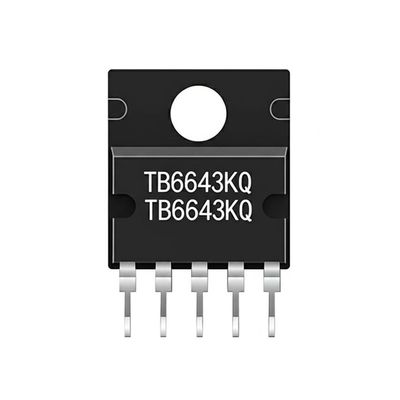

TB6643KQ Integrated Circuit Chip Full-Bridge DC Motor Driver IC HSIP-7 Package
Product Description
The TB6643KQ is a full-bridge DC motor driver IC employing the MOS process for output power transistors. The low ON-resistance MOS process and PWM control enables driving DC motors with high thermal efficiency. Four operating modes are selectable via IN1 and IN2: clockwise (CW), counterclockwise (CCW), Short Brake and Stop.
Specifications
Motor Type AC, DC | Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Bi-CMOS
Applications General Purpose
Current - Output 1.5A
Voltage - Supply 10V ~ 45V
Voltage - Load 10V ~ 45V
Operating Temperature -40°C ~ 85°C (TA)
Key Features
  • Power supply voltage: 50 V (max)
  • Output current: 4.5 A (max)
  • Output ON-resistance: 0.55 Ω (typ.)
  • PWM control
  • CW/CCW/Short Brake/Stop modes
  • Overcurrent shutdown circuit (ISD)
  • Overvoltage shutdown circuit (VSD)
  • Thermal shutdown circuit (TSD)
  • Undervoltage lockout circuit (UVLO)
  • Dead time for preventing shoot-through current
