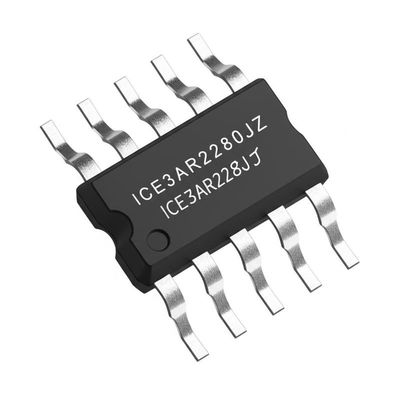

ICE3AR2280JZ Integrated Circuit Chip SMPS Controller with 800V Breakdown Voltage 100kHz Fixed Frequency for 48V Intermediate Bus Converter

ICE3AR2280JZ Integrated Circuit Chip SMPS Controller with 800V Breakdown Voltage 100kHz Fixed Frequency for 48V Intermediate Bus Converter
ICE3AR2280JZ Integrated Circuit Chip SMPS Controller with 800V Breakdown Voltage 100kHz Fixed Frequency for 48V Intermediate Bus Converter ICE3AR2280JZ Integrated Circuit Chip SMPS Controller with 800V Breakdown Voltage 100kHz Fixed Frequency for 48V Intermediate Bus Converter

Large Image :  ICE3AR2280JZ Integrated Circuit Chip SMPS Controller with 800V Breakdown Voltage 100kHz Fixed Frequency for 48V Intermediate Bus Converter

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ICE3AR2280JZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-DIP-7
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ICE3AR2280JZ Integrated Circuit Chip SMPS Controller with 800V Breakdown Voltage 100kHz Fixed Frequency for 48V Intermediate Bus Converter

Description
Part Number: ICE3AR2280JZ Frequency Range: 100kHz Fixed
Voltage - Breakdown: 800V Voltage - Start Up: 17 V
Voltage - Supply (Vcc/Vdd): 10.5V ~ 27V Operating Temperature: -25 °C To 130 °C
Highlight:

800V Breakdown Voltage SMPS Controller

,

100kHz Fixed Frequency Integrated Circuit Chip

,

48V Intermediate Bus Converter Flyback Controller

ICE3AR2280JZ Integrated Circuit Chip CoolSET Offline SMPS Current Mode Flyback Controller
Product Description
ICE3AR2280JZ (CoolSET®-F3R80) is an enhanced 800V MOSFET version of ICE3BRxx65J (CoolSET®-F3R 650V) in DIP-7 package. The PWM controller is based on F3R 650V with some new and enhanced features. In particular it is a device running at 100KHz, implemented with brownout features, installing 800V CoolMOS® with startup cell and packaged into DIP-7.
Specifications
Series CoolMOS™, CoolSET™F3R
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 800V
Topology Flyback
Voltage - Start Up 17 V
Voltage - Supply (Vcc/Vdd) 10.5V ~ 27V
Duty Cycle 75%
Frequency - Switching 100kHz
Power (Watts) 43 W
Fault Protection Over Load, Over Temperature, Over Voltage
Operating Temperature -40°C ~ 150°C (TJ)
Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package PG-DIP-7-1
Mounting Type Through Hole
Key Features
  • 800V avalanche rugged CoolMOS® with Startup Cell
  • Active Burst Mode for lowest Standby Power
  • Selectable entry and exit burst mode level
  • 100kHz internally fixed switching frequency with jittering feature
  • Auto Restart Protection for Over load, Open Loop, VCC Under voltage & Over voltage and Over temperature
  • External auto-restart enable pin
  • Over temperature protection with 50°C hysteresis
  • Built-in 10ms Soft Start
  • Built-in 20ms and extendable blanking time for short duration peak power
  • Propagation delay compensation for both maximum load and burst mode
  • Adjustable brownout feature
  • Overall tolerance of Current Limiting < ±5%
  • BiCMOS technology for low power consumption and wide VCC voltage range
  • Soft gate drive with 50W turn on resistor
Applications
  • 48 V intermediate bus converter (IBC)
  • 1-phase string inverter solutions
