744242510 Integrated Circuit Chip 400mA 320mOhm 1 Channel Common Mode Choke Filter for High-Current Applications

744242510 Integrated Circuit Chip 400mA 320mOhm 1 Channel Common Mode Choke Filter for High-Current Applications
744242510 Integrated Circuit Chip 400mA 320mOhm 1 Channel Common Mode Choke Filter for High-Current Applications 744242510 Integrated Circuit Chip 400mA 320mOhm 1 Channel Common Mode Choke Filter for High-Current Applications

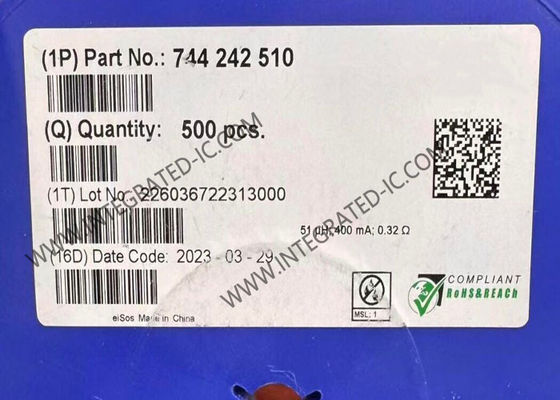

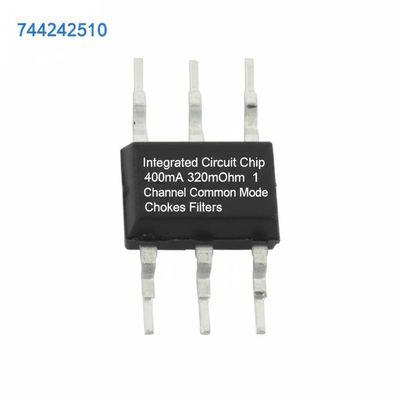

Large Image :  744242510 Integrated Circuit Chip 400mA 320mOhm 1 Channel Common Mode Choke Filter for High-Current Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 744242510
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SMD
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

744242510 Integrated Circuit Chip 400mA 320mOhm 1 Channel Common Mode Choke Filter for High-Current Applications

Description
Part Number: 744242510 Number Of Channels:: 1 Channel
Inductance:: 51 UH Impedance:: 2.5 KOhms
Tolerance:: - 30 %, + 50 % Maximum DC Current:: 300 MA
Highlight:

400mA Integrated Circuit Chip

,

320mOhm Common Mode Choke Filter

,

1 Channel Surface-Mount Filter

744242510 Integrated Circuit Chip 400mA 320mOhm 1 Channel Common Mode Chokes Filters
Product Description
The 744242510 is a surface-mount common-mode choke filter designed for high-current, low-loss applications. Ideal for power management circuits including DC-DC converters, voltage regulator modules (VRMs), and point-of-load (POL) power systems. It offers excellent thermal and mechanical stability for operation in high-temperature environments.
Specifications
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2.5 kOhms @ 25 MHz
Inductance @ Frequency 51 µH @ 100 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 320mOhm
Voltage Rating - DC 80V
Operating Temperature -40°C ~ 125°C
Key Features
  • Magnetically shielded structure minimizes electromagnetic interference (EMI)
  • Ferrite core material provides high magnetic permeability and low loss characteristics
  • High saturation current and low DC resistance for high-efficiency power systems
  • Compact design for PCB space-constrained applications
  • Excellent thermal resistance and mechanical strength for long-term stable operation
  • Good solderability and thermal cycling stability for automated production processes
Applications
The 744242510 is commonly used in DC-DC converters, power modules, power management systems for servers and communication equipment, battery-powered devices, automotive electronic systems, and industrial control systems.
