TLE7184F MOTIX System IC Integrated Circuit Chip with 5V Vreg-Controller for B6 Motor Drives 6V-45V Supply -40°C to 150°C

Description
Part Number: TLE7184F Operating Supply Current: 19 MA
Voltage - Supply: 6V ~ 45V Configuration: Three Phase
Voltage Class: 55 V Operating Temperature: -40°C ~ 150°C (TJ)
Highlight:

Integrated 5V Vreg-Controller System IC

,

6V ~ 45V Supply Voltage Integrated Circuit Chip

,

-40°C ~ 150°C Operating Temperature MOTIX IC

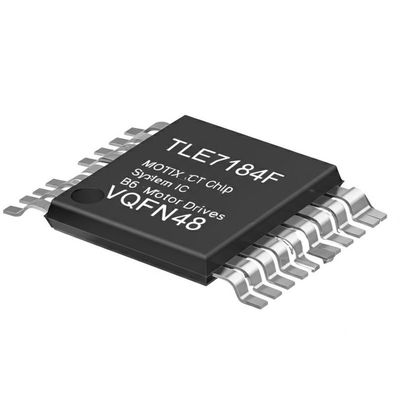

TLE7184F Integrated Circuit Chip MOTIX System IC For B6 Motor Drives VQFN48
Product Description

MOTIX™ TLE7184F is a system IC with 3-phase driver and an integrated 5V Vreg-controller to power a MCU.

The MOTIX™ TLE7184F is a system IC for Brushless Motor Control. It incorporates a voltage supply for a µC, a bridge driver for a B6 configuration, and an application typical PWM interface. Its exposed pad package allows usage even at high ambient temperatures.

Specifications
Motor Type AC, DC | Brushless DC (BLDC), Brushed DC
Function Controller - Commutation, Direction Management
Output Configuration Pre-Driver - Half Bridge (3)
Interface PWM
Technology Power MOSFET
Voltage - Supply 6V ~ 45V
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 48-VQFN Exposed Pad
Supplier Device Package PG-VQFN-48-72
Key Features
  • Drives 6 N-Channel Power MOSFETs
  • Integrated 5V Vreg-Controller to power µC
  • Integrated switch for VDH voltage
  • Separate control input for each MOSFET
  • Adjustable dead time
  • Shoot through protection
  • Analog adjustable Short Circuit Protection levels
  • Low quiescent current mode
  • 1 bit diagnosis ERR
  • Over Temperature shut down and analog temperature output
  • Over Temperature pre-warning
  • Under Voltage shut down
  • Adjustable Over Voltage shut down
  • Current sense OpAmp
  • Over current shut down based on Current sense OpAmp, fixed shut down level
  • 0 …94% duty cycle at 25 kHz PWM frequency
