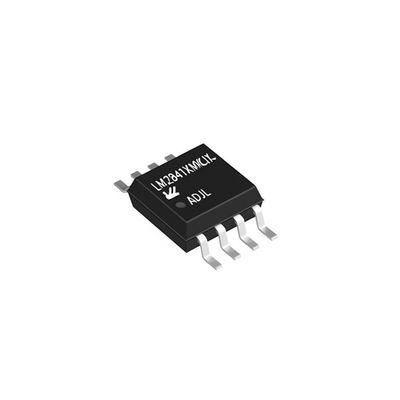

LM2841XMKX-ADJL Integrated Circuit Chip 300mA Step-Down DC/DC Regulator with 4.5V to 42V Input and 550kHz Switching Frequency

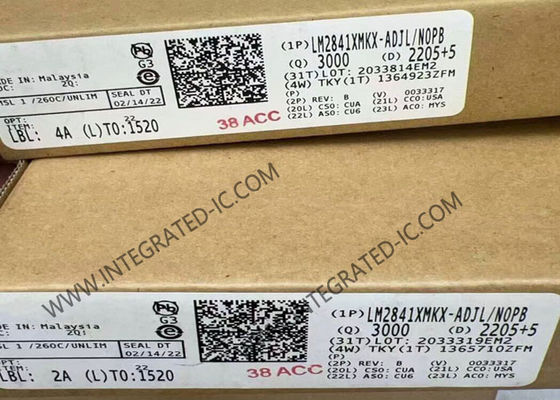

LM2841XMKX-ADJL Integrated Circuit Chip 300mA Step-Down DC/DC Regulator with 4.5V to 42V Input and 550kHz Switching Frequency
LM2841XMKX-ADJL Integrated Circuit Chip 300mA Step-Down DC/DC Regulator with 4.5V to 42V Input and 550kHz Switching Frequency LM2841XMKX-ADJL Integrated Circuit Chip 300mA Step-Down DC/DC Regulator with 4.5V to 42V Input and 550kHz Switching Frequency

Large Image :  LM2841XMKX-ADJL Integrated Circuit Chip 300mA Step-Down DC/DC Regulator with 4.5V to 42V Input and 550kHz Switching Frequency

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LM2841XMKX-ADJL
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOT-6
Delivery Time: 3-5 work days
Payment Terms: TT
Supply Ability: 10000 Pieces per Day
Contact Now

LM2841XMKX-ADJL Integrated Circuit Chip 300mA Step-Down DC/DC Regulator with 4.5V to 42V Input and 550kHz Switching Frequency

Description
Part Number: LM2841XMKX-ADJL Output Current:: 300 MA
Number Of Outputs:: 1 Output Input Voltage - Min:: 4.5 V
Input Voltage - Max:: 42 V Switching Frequency:: 550 KHz
Highlight:

300mA Integrated Circuit Chip

,

4.5V to 42V Input DC/DC Regulator

,

550kHz Switching Frequency Step-Down Regulator

LM2841XMKX-ADJL Integrated Circuit Chip 300mA Step-Down DC/DC Regulator SOT-6
Product Description
LM2841XMKX-ADJL SIMPLE SWITCHER™ devices are PWM DC/DC buck (step-down) regulators. With an input range from 4.5 V to 42 V, they are suitable for a wide range of applications, such as power conditioning from unregulated sources. They feature a low RDSON (0.9‑Ω typical) internal switch for maximum efficiency (85% typical). Operating frequency is fixed at 550 kHz (X option) and 1.25 MHz (Y option), allowing the use of small external components while still being able to have low output voltage ripple. Soft start can be implemented using the shutdown (SHDN) pin with an external RC circuit allowing the user to tailor the soft-start time to a specific application.
Specifications
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 42V
Voltage - Output (Min/Fixed) 0.765V
Voltage - Output (Max) 34V
Current - Output 300mA
Frequency - Switching 550kHz
Synchronous Rectifier No
Operating Temperature -40°C ~ 125°C (TJ)
Features
  • Input voltage 4.5 V to 42 V
  • Output current options of 100 mA, 300 mA, and 600 mA
  • Feedback pin voltage of 0.765 V
  • 550-kHz (X) or 1.25-MHz (Y) switching frequency
  • Low shutdown IQ: 16-µA typical
  • Short-circuit protected
  • Internally compensated
  • Soft-start circuitry
  • Small overall solution size (SOT-6L package)
  • Create a custom design using the LM2840 (or LM2841/42) with the WEBENCH® Power Designer
Applications
  • Battery-powered equipment
  • Industrial distributed power applications
  • Portable media players
  • Portable hand-held instruments
