ADG3308BRUZ 8-Channel Bidirectional Logic Level Translator IC with 1.15 V to 5.5 V Range and 5 ns Propagation Delay

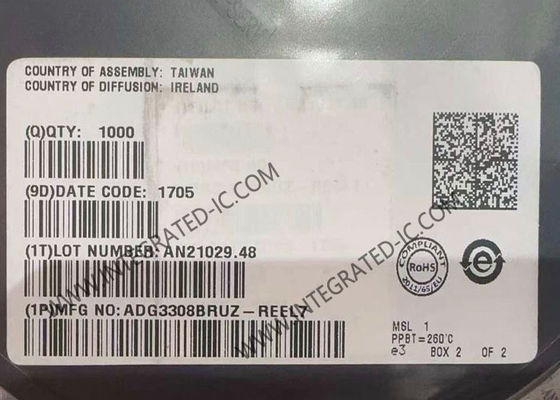

Large Image : ADG3308BRUZ 8-Channel Bidirectional Logic Level Translator IC with 1.15 V to 5.5 V Range and 5 ns Propagation Delay

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ADG3308BRUZ

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TSSOP-20
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ADG3308BRUZ 8-Channel Bidirectional Logic Level Translator IC with 1.15 V to 5.5 V Range and 5 ns Propagation Delay

Description

Part Number:	ADG3308BRUZ	Logic Type:	Level Translator
Propagation Delay Time:	5 Ns	Low Level Output Current:	20 UA
Channels Per Circuit:	8	Operating Temperature:	-40°C ~ 85°C (TA)
Highlight:	8-Channel Logic Level Translator , 1.15 V to 5.5 V Integrated Circuit Chip , 5 ns Propagation Delay Level Translator

ADG3308BRUZ Integrated Circuit Chip 8-Channel Bidirectional Logic Level Translator

Product Description

The ADG3308BRUZ is a bidirectional level translator featuring eight bidirectional channels. It is designed for multivoltage digital system applications, enabling seamless data transfer between low-voltage DSP controllers and higher-voltage devices.

Specifications

Translator Type	Voltage Level
Channel Type	Bidirectional
Number of Circuits	1
Channels per Circuit	8
Voltage - VCCA	1.15 V ~ 5.5 V
Voltage - VCCB	1.65 V ~ 5.5 V
Output Type	Tri-State, Non-Inverted
Data Rate	50Mbps
Operating Temperature	-40°C ~ 85°C (TA)
Features	Auto-Direction Sensing
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	20-TSSOP

Key Features

Bidirectional logic level translation
Operates from 1.15 V to 5.5 V
Low quiescent current < 1 µA
No direction pin required

Applications

Low voltage ASIC level translation
Smart card readers
Cell phones and cell phone cradles
Portable communication devices
Telecommunications equipment
Network switches and routers
Storage systems (SAN/NAS)
Computing/server applications
GPS devices
Portable POS systems
Low cost serial interfaces
