ADUM1300ARWZ Integrated Circuit Chip Digital Isolator with 2500Vrms Isolation Triple Channel and 1 Mb/s Data Rate in SOIC16 Package

ADUM1300ARWZ Integrated Circuit Chip Digital Isolator with 2500Vrms Isolation Triple Channel and 1 Mb/s Data Rate in SOIC16 Package
ADUM1300ARWZ Integrated Circuit Chip Digital Isolator with 2500Vrms Isolation Triple Channel and 1 Mb/s Data Rate in SOIC16 Package ADUM1300ARWZ Integrated Circuit Chip Digital Isolator with 2500Vrms Isolation Triple Channel and 1 Mb/s Data Rate in SOIC16 Package

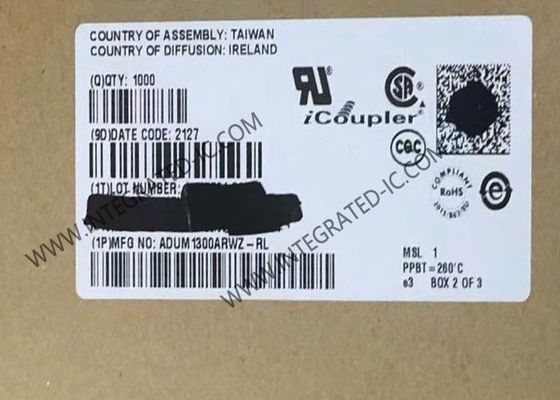

Large Image :  ADUM1300ARWZ Integrated Circuit Chip Digital Isolator with 2500Vrms Isolation Triple Channel and 1 Mb/s Data Rate in SOIC16 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADUM1300ARWZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-16
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ADUM1300ARWZ Integrated Circuit Chip Digital Isolator with 2500Vrms Isolation Triple Channel and 1 Mb/s Data Rate in SOIC16 Package

Description
Part Number: ADUM1300ARWZ Number Of Channels: 3 Channel
Polarity: Unidirectional Data Rate: 1 Mb/s
Isolation Voltage: 2500 Vrms Propagation Delay Time: 65 Ns
Highlight:

2500Vrms Digital Isolator

,

Triple Channel Integrated Circuit Chip

,

1 Mb/s SOIC16

ADUM1300ARWZ Integrated Circuit Chip 2500Vrms Triple Channel Digital Isolator SOIC16
Product Description
The ADUM1300ARWZ is a triple-channel digital isolator providing three independent isolation channels in various configurations and data rates. It features low pulse width distortion (<2 ns for CRW grade) and tight channel-to-channel matching (<2 ns for CRW grade). Unlike optocoupler alternatives, these isolators include a patented refresh feature ensuring DC correctness without input logic transitions and when power is not applied to one supply.
Specifications
Technology Magnetic Coupling
Type General Purpose
Isolated Power No
Number of Channels 3
Inputs - Side 1/Side 2 3/0
Channel Type Unidirectional
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 25kV/µs
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Max) 100ns, 100ns
Pulse Width Distortion (Max) 40ns
Rise / Fall Time (Typ) 2.5ns, 2.5ns
Voltage - Supply 2.7V ~ 5.5V
Operating Temperature -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Key Features
  • Bidirectional communication
  • 3 V/5 V level translation
  • High temperature operation: 125°C
  • High data rate: dc to 90 Mbps (NRZ)
  • Precise timing characteristics
  • 2 ns maximum pulse width distortion
  • 2 ns maximum channel-to-channel matching
  • High common-mode transient immunity: >25 kV/μs
  • Output enable function
  • 16-lead SOIC wide body package
Applications
  • General-purpose multichannel isolation
  • SPI interface/data converter isolation
  • RS-232/RS-422/RS-485 transceivers
  • Industrial field bus isolation
  • Automotive systems
