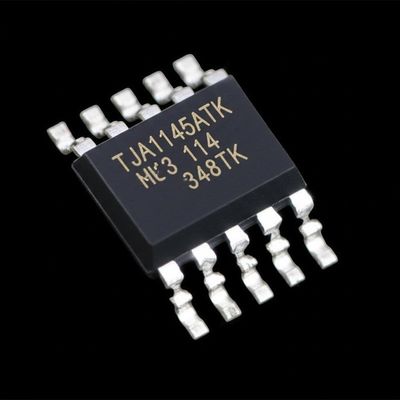

TJA1145ATK High-Speed CAN Transceiver Integrated Circuit Chip with 5 Mb/s Data Rate and 8 kV ESD Protection

Large Image : TJA1145ATK High-Speed CAN Transceiver Integrated Circuit Chip with 5 Mb/s Data Rate and 8 kV ESD Protection

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TJA1145ATK

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	HVSON-14
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TJA1145ATK High-Speed CAN Transceiver Integrated Circuit Chip with 5 Mb/s Data Rate and 8 kV ESD Protection

Description

Part Number:	TJA1145ATK	Data Rate::	5 Mb/s
Number Of Drivers::	1 Driver	Number Of Receivers::	1 Receiver
Operating Supply Current::	45 MA	ESD Protection::	8 KV
Highlight:	5 Mb/s CAN Transceiver , 8 kV ESD Protection CAN Transceiver , ISO 11898-2:2016 Compliant Integrated Circuit Chip

TJA1145ATK Integrated Circuit Chip High-Speed CAN Transceiver For Partial Networking

The TJA1145ATK is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. Designed for high-speed CAN applications in the automotive industry, this transceiver offers differential transmit and receive capability to microcontrollers with CAN protocol controllers.

Specifications

Protocol	CANbus
Number of Drivers/Receivers	1/1
Duplex	Full
Receiver Hysteresis	800 mV
Data Rate	5Mbps
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 150°C (TJ)
Grade	Automotive

Key Features

ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant
Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase
Autonomous bus biasing
Optimized for in-vehicle high-speed CAN communication
No 'false' wake-ups due to CAN FD in TJA1145Ax/FD variants
Hardware and software compatible with the TJA1145, with improved EMC performance
Designed for automotive applications
8 kV ElectroStatic Discharge (ESD) protection (HBM) on CAN bus pins
6 kV ESD protection (IEC TS 62228) on pins BAT and WAKE and CAN bus pins
CAN bus pins short-circuit proof to ±58 V
Battery and CAN bus pins protected against transients (ISO 7637-3)
Suitable for use in 12 V and 24 V systems
Available in SO14 and leadless HVSON14 package (3 mm * 4.5 mm)
AEC-Q100 qualified
Dark green product (halogen free and RoHS compliant)
Advanced ECU power management system
Very low-current Standby and Sleep modes with full wake-up capability
Remote wake-up capability via standard CAN wake-up pattern or selective wake-up frame detection
Local wake-up via the WAKE pin
Wake-up source recognition
Multiple bit rates supported during selective wake-up
Transceiver disengages from the bus when battery supply is removed
VIO input allows for direct interfacing with 3.3 V to 5 V microcontrollers
16-, 24- or 32-bit SPI for configuration, control and diagnosis
Transmit Data (TXD) dominant time-out function with diagnosis
Overtemperature warning and shut-down
Undervoltage detection and recovery on pins VCC, VIO and BAT
