VN5E025AJTR Integrated Circuit Chip High-Side Driver with 3 A Output Current 1.5 mA Operating Supply Current and 13 V Operating Supply Voltage

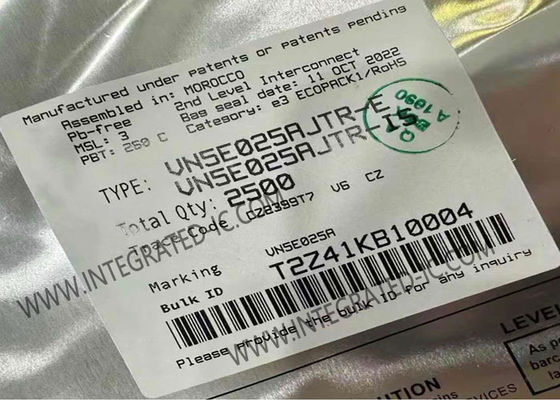

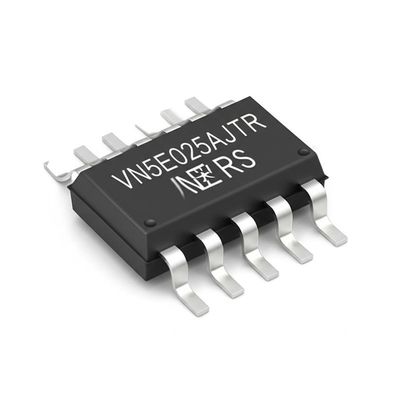

Large Image : VN5E025AJTR Integrated Circuit Chip High-Side Driver with 3 A Output Current 1.5 mA Operating Supply Current and 13 V Operating Supply Voltage

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	VN5E025AJTR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Power SSO-12
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

VN5E025AJTR Integrated Circuit Chip High-Side Driver with 3 A Output Current 1.5 mA Operating Supply Current and 13 V Operating Supply Voltage

Description

Part Number:	VN5E025AJTR	Number Of Drivers::	1 Driver
Number Of Outputs::	1 Output	Output Current::	3 A
Operating Supply Current::	1.5 MA	Operating Supply Voltage::	13 V
Highlight:	3 A Output Current Integrated Circuit Chip , 1.5 mA Operating Supply Current High-Side Driver , 13 V Operating Supply Voltage VIPower M0-5

VN5E025AJTR Integrated Circuit Chip Single Channel High-Side Driver With Analog Current Sense

Product Description

The VN5E025AJTR is a single channel high-side driver manufactured in ST proprietary VIPower M0-5 technology, housed in the compact PowerSSO-12 package. Designed for 12V automotive grounded loads, it provides protection, diagnostics, and easy 3V/5V CMOS compatible interface with any microcontroller.

Specifications

Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.5V ~ 28V
Current - Output (Max)	43A
Rds On (Typ)	25mOhm (Max)
Input Type	Non-Inverting
Features	Auto Restart
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)

Key Features

General

Inrush current active management by power limitation
Very low stand-by current
3.0 V CMOS compatible inputs
Optimized electromagnetic emissions
Very low electromagnetic susceptibility
Compliant with 2002/95/EC European directive
Very low current sense leakage

Diagnostic Functions

Proportional load current sense
High current sense precision for wide currents range
Current sense disable
Off state openload detection
Output short to VCC detection
Overload and short to ground (power limitation) indication
Thermal shutdown indication

Protections

Undervoltage shutdown
Overvoltage clamp
Load current limitation
Self limiting of fast thermal transients
Protection against loss of ground and loss of VCC
Over-temperature shutdown with autorestart (thermal shutdown)
Reverse battery protected
Electrostatic discharge protection

Applications

All types of resistive, inductive and capacitive loads
Suitable as LED driver
