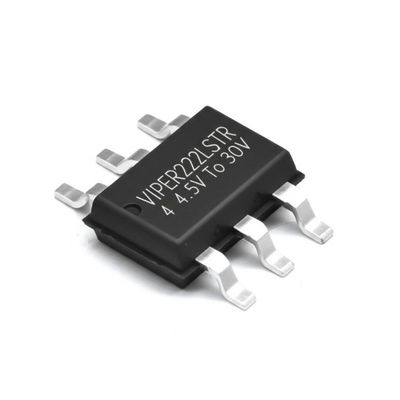

VIPER222LSTR Integrated Circuit Chip High Voltage Converter with 4.5V To 30V Input 730V Avalanche Rugged Power MOSFET in SSOP-10 Package

VIPER222LSTR Integrated Circuit Chip High Voltage Converter with 4.5V To 30V Input 730V Avalanche Rugged Power MOSFET in SSOP-10 Package
VIPER222LSTR Integrated Circuit Chip High Voltage Converter with 4.5V To 30V Input 730V Avalanche Rugged Power MOSFET in SSOP-10 Package VIPER222LSTR Integrated Circuit Chip High Voltage Converter with 4.5V To 30V Input 730V Avalanche Rugged Power MOSFET in SSOP-10 Package

Large Image :  VIPER222LSTR Integrated Circuit Chip High Voltage Converter with 4.5V To 30V Input 730V Avalanche Rugged Power MOSFET in SSOP-10 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: VIPER222LSTR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SSOP-10
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

VIPER222LSTR Integrated Circuit Chip High Voltage Converter with 4.5V To 30V Input 730V Avalanche Rugged Power MOSFET in SSOP-10 Package

Description
Part Number: VIPER222LSTR Output Power:: 11 W
Input / Supply Voltage - Min:: 4.5 V Input / Supply Voltage - Max:: 30 V
Switching Frequency:: 60 KHz Duty Cycle - Max:: 80 %
Highlight:

4.5V To 30V Integrated Circuit Chip

,

730V Avalanche Rugged Power MOSFET High Voltage Converter

,

SSOP-10 Package VIPER222LSTR

VIPER222LSTR Integrated Circuit Chip 4.5V To 30V High Voltage Converter SSOP-10
The VIPER222LSTR is a high-performance high voltage converter that combines a 730V rugged power MOSFET with PWM control. This device integrates the high voltage startup and current sense circuit, eliminating the need for additional components in the Bill of Materials. Frequency jittering spreads EMI for reduced filter requirements, while burst mode operation ensures low input power consumption at light loads.
Key Specifications
Parameter Value
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 730V
Topology Flyback
Voltage - Start Up 30V
Voltage - Supply (Vcc/Vdd) 4.5V ~ 30V
Duty Cycle 80%
Frequency - Switching 60kHz
Power (Watts) 13W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Operating Temperature -40°C ~ 150°C (TJ)
Key Features
  • 730V avalanche rugged power MOSFET
  • Integrated PWM controller
  • 1.2V reference voltage
  • Frequency jittering for reduced EMI
  • 40mW no load input power at 230VAC
  • Built-in short-circuit protection
  • Thermal shutdown capability
Typical Applications
Ideal for auxiliary SMPS in home appliances, consumer electronics, industrial equipment, and lighting systems.
