ADG4612BCPZ Integrated Circuit Chip with 50mOhm On Resistance 4 Channel Quad SPST Switches and 6.1 Ohms Max On Resistance

ADG4612BCPZ Integrated Circuit Chip with 50mOhm On Resistance 4 Channel Quad SPST Switches and 6.1 Ohms Max On Resistance
ADG4612BCPZ Integrated Circuit Chip with 50mOhm On Resistance 4 Channel Quad SPST Switches and 6.1 Ohms Max On Resistance ADG4612BCPZ Integrated Circuit Chip with 50mOhm On Resistance 4 Channel Quad SPST Switches and 6.1 Ohms Max On Resistance

Large Image :  ADG4612BCPZ Integrated Circuit Chip with 50mOhm On Resistance 4 Channel Quad SPST Switches and 6.1 Ohms Max On Resistance

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADG4612BCPZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LFCSP-16
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ADG4612BCPZ Integrated Circuit Chip with 50mOhm On Resistance 4 Channel Quad SPST Switches and 6.1 Ohms Max On Resistance

Description
Part Number: ADG4612BCPZ Number Of Channels: 4 Channel
Configuration: 4 X SPST On Resistance - Max: 6.1 Ohms
Pd - Power Dissipation: 7.2 MW Switch Continuous Current: 160 MA
Highlight:

50mOhm On Resistance Integrated Circuit Chip

,

4 Channel IC Chip

,

6.1 Ohms Max On Resistance Analog Switch

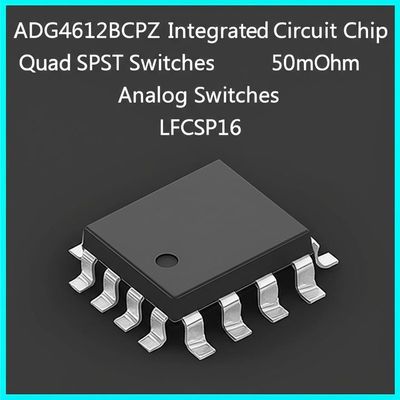

ADG4612BCPZ Integrated Circuit Chip Quad SPST Switches 50mOhm Analog Switches LFCSP16
Product Description
The ADG4612BCPZ contains four independent single-pole/single-throw (SPST) switches. These switches are activated with Logic 1 on the appropriate control input.
Specifications
Parameter Value
Switch Circuit SPST - NO
Multiplexer/Demultiplexer Circuit 1:1
Number of Circuits 4
On-State Resistance (Max) 5.1Ohm
Channel-to-Channel Matching (ΔRon) 50mOhm
Voltage - Supply, Single (V+) 3V ~ 12V
Voltage - Supply, Dual (V±) ±3V ~ 5.5V
Switch Time (Ton, Toff) (Max) 73ns, 91ns
-3db Bandwidth 250MHz
Charge Injection 292pC
Channel Capacitance (CS(off), CD(off)) 11.5pF, 11.5pF
Current - Leakage (IS(off)) (Max) 10nA
Crosstalk -74dB @ 1MHz
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 16-WFQFN Exposed Pad, CSP
Supplier Device Package 16-LFCSP (3x3)
Key Features
  • Power Off Protection
  • Switch guaranteed OFF with no power supplies present
  • Inputs are high impedance with no power
  • Switch turns OFF if input > VDD + VT
  • Over-voltage protection up to +16V
  • PSS Robust
  • Negative Signal Capability passes signals down to -5.5V
  • 6.1Ω Max On Resistance
  • 1.4Ω On Resistance Flatness
  • ±3V to ±5.5V dual supply
  • 3V to 12V single supply
  • 3V logic-compatible inputs
  • Rail-to-rail operation
Applications
  • Hot swap applications
  • Data acquisition systems
  • Battery-powered systems
  • Automatic test equipment
  • Communication systems
  • Relay Replacement
