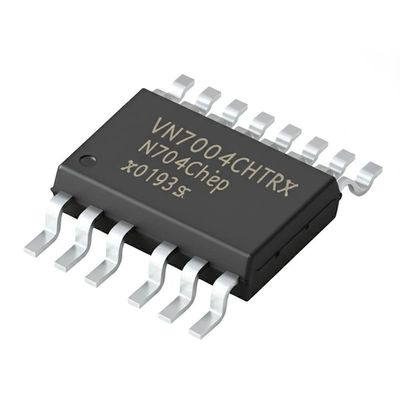

VN7004CHTR Automotive High-Side Driver Integrated Circuit Chip with 15 A Output Current 4 V to 28 V Supply Voltage and 3 V 5 V CMOS-Compatible Interface

Description

Part Number:	VN7004CHTR	Number Of Drivers::	1 Driver
Number Of Outputs::	1 Output	Output Current::	15 A
Supply Voltage - Min::	4 V	Supply Voltage - Max::	28 V
Highlight:	15 A Output Current High-Side Driver , 4 V to 28 V Supply Voltage Integrated Circuit Chip , 3 V 5 V CMOS-Compatible Automotive IC

VN7004CHTR Integrated Circuit Chip Automotive High-Side Driver With CurrentSense Analog Feedback

The VN7004CHTR is a single channel high-side driver manufactured using ST proprietary VIPower® technology, housed in an Octapak package. Designed for 12V automotive grounded loads, it features a 3V and 5V CMOS-compatible interface with comprehensive protection and diagnostic capabilities.

Key Specifications

Parameter	Value
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4V ~ 28V
Current - Output (Max)	80A
Rds On (Typ)	4mOhm
Operating Temperature	-40°C ~ 150°C (TJ)
Grade	Automotive

Key Features

AEC-Q100 qualified for automotive applications
Single channel smart high-side driver with CurrentSense analog feedback
Very low standby current consumption
Compatible with 3.0V and 5V CMOS outputs
Comprehensive diagnostic functions including:
- Overload and short to ground indication
- Thermal shutdown indication
- OFF-state open-load detection
- Output short to VCC detection
Robust protection features:
- Undervoltage shutdown
- Overvoltage clamp
- Load current limitation
- Reverse battery protection
- Electrostatic discharge protection

Typical Applications

Ideal for automotive smart power distribution systems, including glow plugs, heating systems, DC motors, relay replacement, and high power resistive/inductive actuators.
