LMR36006BRNXR Integrated Circuit Chip Synchronous Step-Down Converter with 0.6A Output Current 1 MHz Switching Frequency and 4.2V to 60V Input Voltage

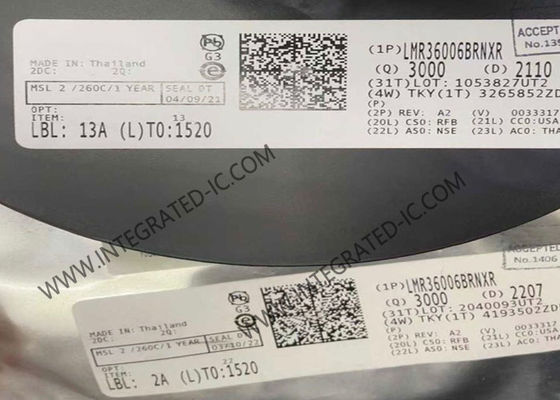

Large Image : LMR36006BRNXR Integrated Circuit Chip Synchronous Step-Down Converter with 0.6A Output Current 1 MHz Switching Frequency and 4.2V to 60V Input Voltage

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LMR36006BRNXR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VQFN-HR-12
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

LMR36006BRNXR Integrated Circuit Chip Synchronous Step-Down Converter with 0.6A Output Current 1 MHz Switching Frequency and 4.2V to 60V Input Voltage

Description

Part Number:	LMR36006BRNXR	Output Current:	600 MA
Number Of Outputs:	1 Output	Switching Frequency:	1 MHz
Input Voltage:	4.2 V To 60 V	Operating Temperature:	-40°C ~ 150°C (TJ)
Highlight:	0.6A Output Current Integrated Circuit Chip , 1 MHz Switching Frequency Synchronous Step-Down Converter , 4.2V to 60V Input Voltage DC/DC Converter

LMR36006BRNXR Integrated Circuit Chip 0.6A Synchronous Step-Down Converter

Product Description

The LMR36006BRNXR is an easy-to-use, synchronous step-down DC/DC converter with integrated high-side and low-side power MOSFETs. It delivers up to 0.6A of output current across a wide input voltage range of 4.2V to 60V, with tolerance up to 66V.

Specifications

Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.2V
Voltage - Input (Max)	60V
Voltage - Output (Min/Fixed)	1V
Voltage - Output (Max)	60V
Current - Output	600mA
Frequency - Switching	1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	12-PowerVFQFN
Supplier Device Package	12-VQFN-HR (3x2)

Key Features

Designed for reliable and rugged applications
Input transient protection up to 66V
Junction temperature range -40°C to +150°C
Protection features: thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, hiccup short-circuit protection
0.2-V dropout with 0.6-A load (typical)
Low power dissipation across load spectrum
87% efficiency at 1 MHz (24VIN, 5VOUT, 0.6A)
92% efficiency at 1 MHz (12VIN, 5VOUT, 0.6A)
Increased light load efficiency in PFM
Low operating quiescent current of 26 µA
Small 2-mm * 3-mm HotRod™ package

Applications

Field transmitters and sensors, PLC modules
Thermostats, video surveillance, HVAC systems
AC and servo drives, rotary encoders
Industrial transport, asset tracking

Related Components in Stock

Part Number	Package
LT8391AHFE	TSSOP-28
LT8391AHUFD	QFN-28
LT8391AIFE	TSSOP-28
LT8391AIUFD	QFN-28
LT8391AJFE	TSSOP-28
MAX31840ATA	TDFN-8
MAX20090ATP/VY	TQFN-20
MAX20090AUPA/V	TSSOP-20
MAX20090AUPB/V	TSSOP-20
MAX16839ASA	SOIC-8
MAX16839ATT	TDFN-6
MAX16839ATT/V	TDFN-6
MAX20431AR/V	TQFN
MAX20432ATIA/VY	28-WFQFN
MAX20432ATIB/VY	TQFN-28
MAX20432ATIC/VY	TQFN-28
MAX20432ATIW/VY	TQFN-28
ADP5320BCBZ-1	42-WLCSP
MAX25221BATJ/V	TQFN-32
MAX25222ATJ/V	TQFN-32

Frequently Asked Questions

Are your products original?

Yes, all products are original, new original import is our purpose.

Which Certificates do you have?

We are ISO 9001:2015 Certified Company and member of ERAI.

Can you support small quantity order or sample? Is the sample free?

Yes, we support sample order and small order. Sample cost is different according to your order or project.

How to ship my order? Is it safe?

We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

What about the lead time?

We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
