OV10642-N79Y-RF Sensor IC CMOS Image Sensor with 1.3Megapixel 1280x1080 Resolution and 60 fps Output

OV10642-N79Y-RF Sensor IC CMOS Image Sensor with 1.3Megapixel 1280x1080 Resolution and 60 fps Output
OV10642-N79Y-RF Sensor IC CMOS Image Sensor with 1.3Megapixel 1280x1080 Resolution and 60 fps Output OV10642-N79Y-RF Sensor IC CMOS Image Sensor with 1.3Megapixel 1280x1080 Resolution and 60 fps Output

Large Image :  OV10642-N79Y-RF Sensor IC CMOS Image Sensor with 1.3Megapixel 1280x1080 Resolution and 60 fps Output

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: OV10642-N79Y-RF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: a-CSP™
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

OV10642-N79Y-RF Sensor IC CMOS Image Sensor with 1.3Megapixel 1280x1080 Resolution and 60 fps Output

Description
Part Number: OV10642-N79Y-RF Active Array Size: 1280x 1080
Output Interfaces: 12-bit DVP, MIPI/LVDS CSI-2 Shutter: Rolling Shutter
Pixel Size: 4.2 μmx 4.2 μm Image Area: 5410 μm X 4570 μm
Highlight:

1.3Megapixel Sensor IC

,

1280x1080 resolution CMOS Image Sensor

,

60 fps OmniHDR-S Image Sensor

OV10642-N79Y-RF Sensor IC CMOS Image Sensor 1.3Megapixel OmniHDR‑S Image Sensor
Product Description

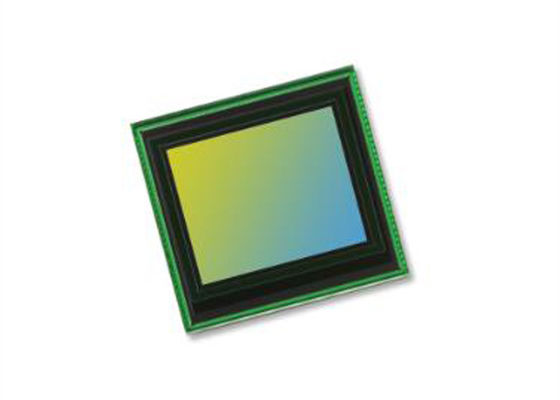

The OV10642-N79Y-RF is a high-performance 1.3-megapixel OmniHDR®-S image sensor delivering superior sensitivity and best-in-class high dynamic range (HDR). This sensor enables advanced automotive features including pedestrian detection, lane-departure warning, traffic sign recognition, lane keeping assist systems, and high beam assist.
Utilizing OmniBSI™ technology, the OV10642-N79Y-RF provides industry-leading sensitivity and extended dynamic range up to 120 dB in a compact, low-power package. The 1/2.56-inch sensor supports an active array of 1280 x 1080 pixels with RAW image output at up to 60 frames per second.
Specifications
  • Active array size: 1280 x 1080
  • Maximum image transfer rate: 60 fps (full resolution)
  • Power supply:
    • Analog: 3.14-3.47V
    • Digital: 1.425-1.65V
    • DOVDD: 1.7-1.9V
    • AVDD: 1.7-1.9V
  • Power requirements:
    • Active: 360 mW
    • Standby: 100 μW
  • Temperature range:
    • Operating: -40°C to +105°C (sensor ambient), -40°C to +125°C (junction)
  • Output interfaces: 12-bit DVP, MIPI/LVDS CSI-2
  • Lens size: 1/2.56"
  • Lens chief ray angle: 15°
  • Output formats: Multiple RAW formats including 20-bit combined, 12-bit compressed, and 16-bit log domain
  • Scan mode: Progressive
  • Shutter: Rolling shutter
  • Pixel size: 4.2 μm x 4.2 μm
  • Image area: 5410 μm x 4570 μm
Key Features
  • Supports multiple image sizes: 1280 x 1080, VGA, QVGA, and cropped sizes
  • OmniHDR-S technology for superior dynamic range
  • High sensitivity and low power consumption
  • Advanced image sensor processor functions including:
    • Automatic exposure/gain control
    • Lens correction
    • Defective pixel cancellation
    • HDR combination and PWL mapping
    • Automatic black level correction
  • Multiple output formats including RAW
  • Horizontal and vertical sub-sampling
  • Serial camera control bus (SCCB) for register programming
  • High speed serial data transfer with MIPI CSI-2, parallel 12-bit DVP output
  • External frame synchronization capability
  • Embedded temperature sensor
  • One time programmable (OTP) memory
Applications
  • Automotive systems:
    • Lane Departure Warning/Lane Keep Assist
    • Blind Spot Detection
    • Pedestrian Detection
    • Traffic Sign Recognition
    • Occupant Sensor
    • Autonomous Driving
    • High Beam Assist
