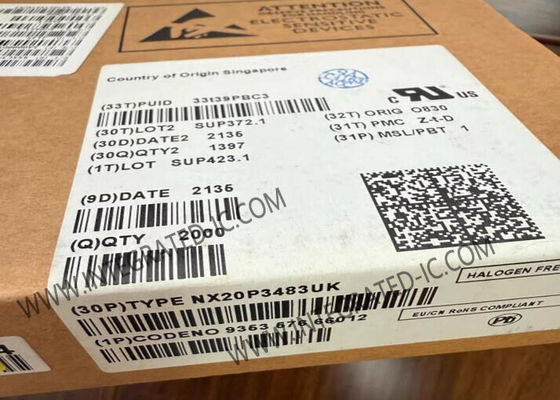

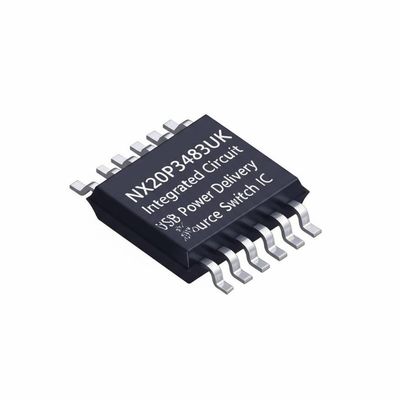

NX20P3483UK Integrated Circuit Chip USB Power Delivery IC with USB-C 3.0 3.4A Operating Current and 2.7V to 5.5V Operating Voltage

NX20P3483UK Integrated Circuit Chip USB Power Delivery IC with USB-C 3.0 3.4A Operating Current and 2.7V to 5.5V Operating Voltage
NX20P3483UK Integrated Circuit Chip USB Power Delivery IC with USB-C 3.0 3.4A Operating Current and 2.7V to 5.5V Operating Voltage NX20P3483UK Integrated Circuit Chip USB Power Delivery IC with USB-C 3.0 3.4A Operating Current and 2.7V to 5.5V Operating Voltage

Large Image :  NX20P3483UK Integrated Circuit Chip USB Power Delivery IC with USB-C 3.0 3.4A Operating Current and 2.7V to 5.5V Operating Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: NX20P3483UK
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WLCSP-42
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

NX20P3483UK Integrated Circuit Chip USB Power Delivery IC with USB-C 3.0 3.4A Operating Current and 2.7V to 5.5V Operating Voltage

Description
Part Number: NX20P3483UK Standard: USB-C 3.0
Type: Power Delivery Operating Supply Current: 3.4 A
Operating Supply Voltage: 2.7 V To 5.5 V Operating Temperature: -40°C ~ 85°C (TA)
Highlight:

USB-C 3.0 Integrated Circuit Chip

,

3.4A Operating Current USB Power Delivery IC

,

2.7V to 5.5V Operating Voltage NX20P3483UK

NX20P3483UK Integrated Circuit Chip USB Power Delivery Sink Source Switch IC WLCSP42
Product Description
The NX20P3483UK is a versatile integrated circuit combining multiple power switches and an LDO for USB Power Delivery applications. This IC features a bi-directional high-voltage power switch supporting 20V sink and 6V source operations, a 5V power switch for source, and a 100mA LDO for dead battery operation support.
The high-voltage power switch offers 29V DC tolerance, capable of sinking up to 5A at 20V maximum and sourcing up to 3.4A at 6V maximum. When configured as a high-voltage sink switch, it includes overvoltage protection and reverse current protection. As a high-voltage source switch, it integrates an adjustable overcurrent limit circuit.
Specifications
Switch Type USB Switch
Number of Outputs 1
Ratio - Input:Output 1:1
Interface I2C
Voltage - Load 2.8V ~ 20V
Current - Output (Max) 5A
Rds On (Typ) 28mOhm
Features Slew Rate Controlled
Fault Protection Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 42-WLCSP (2.91x2.51)
Package / Case 42-UFBGA, WLCSP
Key Features
  • Wide supply voltage range for VBUS from 2.8V to 20V
  • System power supply V5V from 4.0V to 5.5V
  • Chip power supply VDD from 2.7V to 5.5V
  • VBUS to VCHG Bi-directional Switch
  • V5V to VBUS Switch
  • Integrated high-voltage LDO with reverse voltage protection
  • Supports four different I²C target addresses by ADDR pin
  • ESD protection
  • UL and CB safety approvals
  • OVP, OCP, SCP and RCP protections for the switches
  • IEC61000-4-5 Surge protection up to 95V
Applications
  • Consumer electronics
  • Notebooks, Ultrabooks, and Desktop computers
  • Tablets and Smartphones
  • USB PD DFP, UFP, and DRP applications
