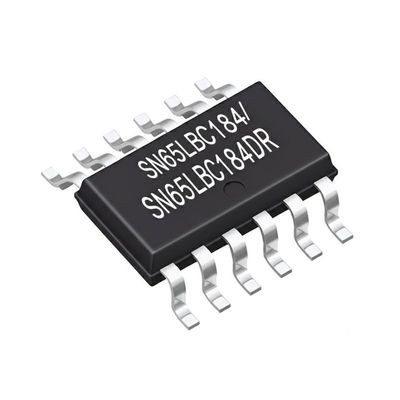

SN65LBC184DR Integrated Circuit Chip RS-485 Transceiver Differential Data Line Transceiver
Product Description
The SN65LBC184DR is a differential data line transceiver in the trade-standard footprint of the SN75176 with built-in protection against high-energy noise transients. This transceiver provides substantial reliability improvements with better immunity to noise transients coupled to data cables compared to most existing devices. It offers a reliable, low-cost, direct-coupled (no isolation transformer required) data line interface without needing external components.
The SN65LBC184DR can withstand overvoltage transients of 400W peak (typical), meeting the conventional combination wave specified in IEC 61000-4-5, which simulates overvoltage transients from switching and secondary lightning effects.
Specifications
| Type |
Transceiver |
| Protocol |
RS422, RS485 |
| Number of Drivers/Receivers |
1/1 |
| Duplex |
Half |
| Receiver Hysteresis |
70 mV |
| Data Rate |
250kbps |
| Voltage - Supply |
4.75V ~ 5.25V |
| Operating Temperature |
-40°C ~ 85°C |
| Mounting Type |
Surface Mount |
| Package / Case |
8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package |
8-SOIC |
Key Features
- Integrated transient voltage suppression
- ESD Protection for bus terminals exceeds: ±30kV IEC 61000-4-2 (contact discharge), ±30kV IEC 61000-4-2 (air-gap discharge), ±15kV EIA/JEDEC Human body model
- Circuit damage protection of 400W peak (typical) per IEC 61000-4-5
- Controlled driver output-voltage slew rates for longer cable stub lengths
- 250kbps operation in electrically noisy environments
- Open-circuit fail-safe receiver design
- 1/4 Unit load allows for 128 devices on bus
- Thermal shutdown protection
- Power-up and power-down glitch protection
- Meets or exceeds TIA/EIA-485 (RS-485) and ISO/IEC 8482:1993(E) standards
- Low disabled supply current: 300µA maximum
- Pin compatible with SN75176
