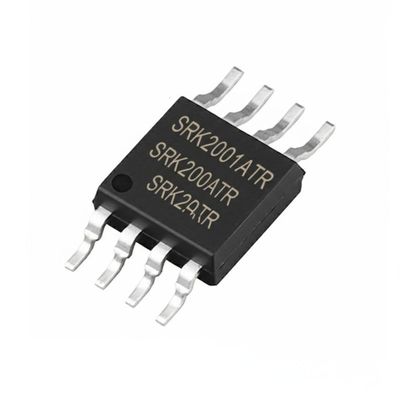

SRK2001ATR Integrated Circuit Chip Adaptive Synchronous Rectification Controller For LLC Resonant Converter

SRK2001ATR Integrated Circuit Chip Adaptive Synchronous Rectification Controller For LLC Resonant Converter
SRK2001ATR Integrated Circuit Chip Adaptive Synchronous Rectification Controller For LLC Resonant Converter SRK2001ATR Integrated Circuit Chip Adaptive Synchronous Rectification Controller For LLC Resonant Converter

Large Image :  SRK2001ATR Integrated Circuit Chip Adaptive Synchronous Rectification Controller For LLC Resonant Converter

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SRK2001ATR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SSOP-10
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

SRK2001ATR Integrated Circuit Chip Adaptive Synchronous Rectification Controller For LLC Resonant Converter

Description
Part Number: SRK2001ATR Output Current:: 4 A
Input Voltage - Max:: 32 V Input Voltage - Min:: 4.5 V
Minimum Operating Temperature:: - 40 C Maximum Operating Temperature:: + 150 C
Highlight:

LLC resonant converter IC chip

,

adaptive synchronous rectification controller

,

SRK2001ATR integrated circuit chip

SRK2001ATR Integrated Circuit Chip Adaptive Synchronous Rectification Controller For LLC Resonant Converter
Product Description
The SRK2001ATR controller implements a specialized control scheme for secondary side synchronous rectification in LLC resonant converters using a transformer with center tap secondary winding for full wave rectification. It features two high-current gate drive outputs, each capable of directly driving N-channel power MOSFETs. Separate control for each gate driver with interlock logic prevents simultaneous conduction of synchronous rectifier MOSFETs.
Specifications
Applications Secondary-Side Controller, Synchronous Rectifier
Voltage - Supply 4.5V ~ 32V
Current - Supply 35 mA
Operating Temperature -25°C ~ 125°C
Key Features
  • Secondary side synchronous rectification controller optimized for LLC resonant converter
  • Dual gate driver for N-channel MOSFETs
  • Adaptive turn-off logic
  • Turn-on logic with adaptive masking time
  • Auto-compensation of parasitic inductance
  • Low consumption mode: 50 μA quiescent current
  • VCC operating voltage range 4.5 V to 32 V
  • High voltage drain-to-source Kelvin sensing for each SR MOSFET
  • Operating frequency up to 500 kHz
  • Programmable exit load levels from burst-mode
  • SSOP10 package
Applications
  • AC-DC adapters
  • All-in-one PC
  • High-end flat panel TV
  • 80+/85+ compliant ATX SMPS
  • 90+/92+ compliant SERVER SMPS
  • Industrial SMPS
