L76LB-A31 Wireless Communication GNSS Module 2.8V To 4.3V with 33 Tracking Channels and 99 Acquisition Channels

L76LB-A31 Wireless Communication GNSS Module 2.8V To 4.3V with 33 Tracking Channels and 99 Acquisition Channels
L76LB-A31 Wireless Communication GNSS Module 2.8V To 4.3V with 33 Tracking Channels and 99 Acquisition Channels L76LB-A31 Wireless Communication GNSS Module 2.8V To 4.3V with 33 Tracking Channels and 99 Acquisition Channels

Large Image :  L76LB-A31 Wireless Communication GNSS Module 2.8V To 4.3V with 33 Tracking Channels and 99 Acquisition Channels

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: L76LB-A31
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: Module
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

L76LB-A31 Wireless Communication GNSS Module 2.8V To 4.3V with 33 Tracking Channels and 99 Acquisition Channels

Description
Part Number: L76LB-A31 Frequency:: 1.561098 GHz, 1.57542 GHz, 1.6025625 GHz
Time To First Fix - Cold Start:: 35 S Acquisition Sensitivity:: - 148 DBm
Supply Voltage - Min:: 3.3 V Supply Voltage - Max:: 3.3 V
Highlight:

2.8V To 4.3V GNSS Module

,

33 Tracking Channels Wireless Communication Module

,

99 Acquisition Channels GNSS Module

L76LB-A31 Wireless Communication Module 2.8V To 4.3V Compact GNSS Module
Product Description

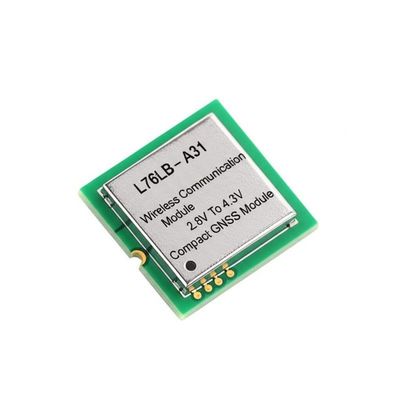

The L76LB-A31 is an extremely compact GNSS module featuring a concurrent GNSS receiver with multiple GNSS system support. It provides simultaneous GPS, GLONASS, Galileo, BDS and QZSS open service L1 reception capability. With 33 tracking channels, 99 acquisition channels, and 210 PRN channels, the L76LB-A31 can acquire and track any combination of multiple satellite signals.
Specifications
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS
Frequency 1.561GHz, 1.575GHz, 1.602GHz
Data Rate 921.6kbps
Sensitivity -165dBm
Serial Interfaces I2C, UART
Antenna Type Antenna Not Included
Utilized IC / Part AG3331
Voltage - Supply 2.8V ~ 4.3V
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C
Key Features
  • Extremely compact size: 10.1 mm * 9.7 mm * 2.3 mm
  • Multi-GNSS engine for GPS, GLONASS, Galileo, BDS and QZSS
  • EASY™ advanced AGPS technology without external memory
  • AlwaysLocate™ intelligent algorithm for power saving
  • LOCUS embedded logger solution requiring no host or external flash
  • High sensitivity: -165 dBm @ Tracking, -148 dBm @ Acquisition
  • 99 acquisition/33 tracking channels and 210 PRN channels
  • Support for DGPS and SBAS (WAAS/EGNOS/MSAS/GAGAN)
  • Anti-Jamming with Multi-tone Active Interference Canceller
  • Balloon mode for high altitude operation up to 80 km
  • PPS VS. NMEA capability for time service applications
Applications
The L76LB-A31's superior performance makes it ideal for automotive, industrial PDA, consumer, and industrial applications. Its extremely low power consumption makes it particularly suitable for power-sensitive devices, especially portable applications.
