2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications

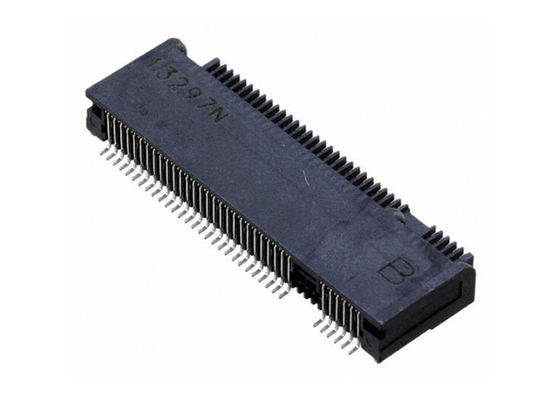

Large Image : 2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	2199119-3

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	67POS
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications

Description

Part Number:	2199119-3	Product:	M.2 (NGFF)
Number Of Positions:	67 Position	Current Rating:	500 MA
Insulation Resistance:	500 MOhms	Voltage Rating:	50 V
Highlight:	67 Position M.2 Connector , 0.50mm Pitch M.2 Connector , 500 mA Current Rating M.2 Connector

2199119-3 Connectors NGFF Mini Card M.2 Connectors 67POS Card Edge Connectors

Product Description

The 2199119-3 is a 0.50mm pitch M.2 (NGFF) Mini Card connector with 67 positions, gold-plated contacts, and double-sided module configuration.

Specifications

Card Type	M.2 (NGFF) Mini Card
Gender	Female
Number of Positions	67
Number of Rows	2
Pitch	0.020" (0.50mm)
Read Out	Dual
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	15.0µin (0.38µm)
Color	Black
Operating Temperature	-40°C ~ 80°C
Insulation Material	Thermoplastic

Key Features

Board-to-Board connector system
Right angle PCB mount orientation
Gold-plated contacts for reliable connectivity
High temperature thermoplastic housing
Compact dimensions: 21.9mm * 8.7mm * 3.2mm
Wide operating temperature range (-40°C to 85°C)
Surface mount termination for secure PCB attachment

Product Image
