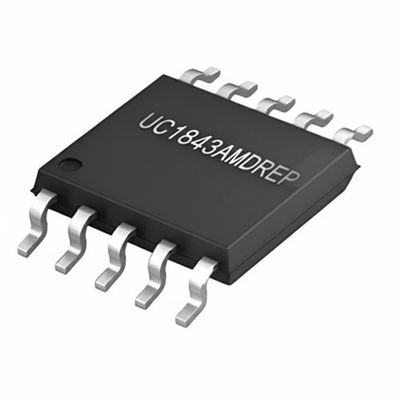

UC1843AMDREP Enhanced Current-Mode PWM Controller Integrated Circuit Chip with 500 kHz Operation and Low Start-Up Current (<0.5 mA)

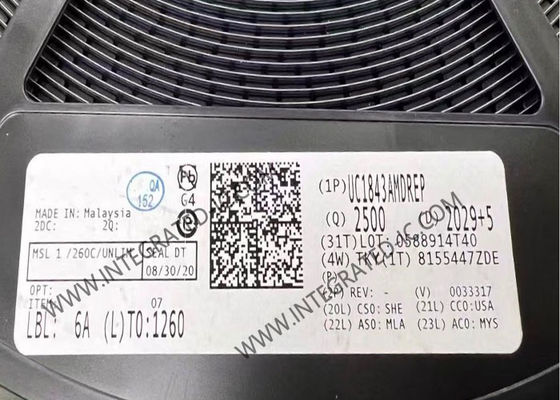

Large Image : UC1843AMDREP Enhanced Current-Mode PWM Controller Integrated Circuit Chip with 500 kHz Operation and Low Start-Up Current (<0.5 mA)

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	UC1843AMDREP

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOIC-8
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000 Pieces per Day

Contact Now

UC1843AMDREP Enhanced Current-Mode PWM Controller Integrated Circuit Chip with 500 kHz Operation and Low Start-Up Current (<0.5 mA)

Description

Part Number:	UC1843AMDREP	Switching Frequency::	500 KHz
Number Of Outputs::	1 Output	Duty Cycle - Max::	100 %
Output Voltage::	5 V	Output Current::	1 A
Highlight:	500 kHz Operation PWM Controller , Low Start-Up Current Integrated Circuit Chip , Enhanced Current-Mode PWM Controller

UC1843AMDREP Integrated Circuit Chip Enhanced Current-Mode PWM Controller

Product Description

The UC1843AMDREP control IC is a pin-for-pin compatible improved version of the UC3842/3/4/5 family, designed to control current mode switched mode power supplies. Key improvements include:

Start up current guaranteed to be less than 0.5 mA
Oscillator discharge trimmed to 8.3 mA
During under voltage lockout, the output stage can sink at least 10 mA at less than 1.2 V for VCC over 5 V

Specifications

Applications	PWM Controller
Voltage - Input	-0.3V ~ 6.3V
Voltage - Supply	7.9V ~ 30V
Current - Supply	11 mA
Operating Temperature	-55°C ~ 125°C (TA)

Features

Controlled Baseline
One Assembly/Test Site, One Fabrication Site
Extended Temperature Performance of -55°C to 125°C
Enhanced Diminishing Manufacturing Sources (DMS) Support
Enhanced Product Change Notification
Qualification Pedigree
Optimized for Off-line and DC-to-DC Converters
Low Start Up Current (<0.5 mA)
Trimmed Oscillator Discharge Current
Automatic Feed Forward Compensation
Pulse-by-Pulse Current Limiting
Enhanced Load Response Characteristics
Under-Voltage Lockout With Hysteresis
Double Pulse Suppression
High Current Totem Pole Output
Internally Trimmed Bandgap Reference
500 kHz Operation
Low RO Error Amp
