ADC122S706CIMTX 12-Bit 1 MS/s 73.2 dB SNR Integrated Circuit ADC Converter for Precision Applications

ADC122S706CIMTX 12-Bit 1 MS/s 73.2 dB SNR Integrated Circuit ADC Converter for Precision Applications

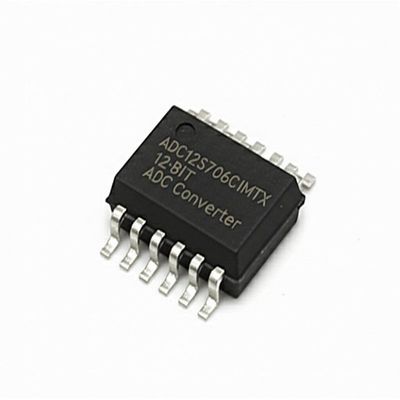

ADC122S706CIMTX 12-Bit 1 MS/s 73.2 dB SNR Integrated Circuit ADC Converter for Precision Applications ADC122S706CIMTX 12-Bit 1 MS/s 73.2 dB SNR Integrated Circuit ADC Converter for Precision Applications

Large Image :  ADC122S706CIMTX 12-Bit 1 MS/s 73.2 dB SNR Integrated Circuit ADC Converter for Precision Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADC122S706CIMTX
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TSSOP-14
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ADC122S706CIMTX 12-Bit 1 MS/s 73.2 dB SNR Integrated Circuit ADC Converter for Precision Applications

Description
Part Number: ADC122S706CIMTX Resolution: 12 Bit
Sampling Rate: 1 MS/s Interface Type: SPI
SNR - Signal To Noise Ratio: 73.2 DB DNL - Differential Nonlinearity: 0.95 LSB
Highlight:

12-Bit ADC Converter

,

1 MS/s Integrated Circuit Chip

,

73.2 dB SNR Analog-to-Digital Converter

ADC122S706CIMTX Integrated Circuit Chip 12-Bit Simultaneous Sampling ADC Converter
Product Description
The ADC122S706CIMTX is a dual 12-bit, 500 kSPS to 1 MSPS simultaneous sampling Analog-to-Digital (A/D) converter. Both channels feature simultaneous sampling to preserve relative phase information. Based on a successive-approximation register architecture, it maintains differential analog inputs from internal track-and-hold circuits through the A/D converter for excellent common-mode signal rejection. The converter supports an external reference voltage ranging from 1.0V to VA.
Specifications
Number of Bits 12
Sampling Rate (Per Second) 1M
Number of Inputs 2
Input Type Differential, Single Ended
Data Interface SPI, DSP
Configuration S/H-ADC
Ratio - S/H:ADC 1:1
Number of A/D Converters 2
Architecture SAR
Reference Type External
Voltage - Supply, Analog 5V
Voltage - Supply, Digital 2.7V ~ 5.5V
Features Simultaneous Sampling
Operating Temperature -40°C ~ 105°C
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 14-TSSOP
Mounting Type Surface Mount
Key Features
  • True Simultaneous Sampling Differential Inputs
  • Guaranteed Performance from 500 kSPS to 1 MSPS
  • External Reference
  • Wide Input Common-Mode Voltage Range
  • Single or Dual High-Speed Serial Data Outputs
  • Operating Temperature Range of −40°C to +105°C
  • SPI™/QSPI™/MICROWIRE/DSP Compatible Serial Interface
Key Specifications

Conversion Rate: 500 kSPS to 1 MSPS

INL: ±1 LSB (Max)

DNL: ±0.95 LSB (Max)

SNR: 71 dBc (Min)

THD: -72 dBc (Min)

ENOB: 11.25 Bits (Min)

Power Consumption at 1 MSPS:

- Converting, VA = 5V, VD = 3V: 20 mW (Typ)

- Converting, VA = 5V, VD = 5V: 25 mW (Typ)

- Power-Down: 3 µW (Typ)

Applications
  • Motor Control
  • Power Meters/Monitors
  • Multi-Axis Positioning Systems
  • Instrumentation and Control Systems
  • Data Acquisition Systems
  • Medical Instruments
  • Direct Sensor Interface
