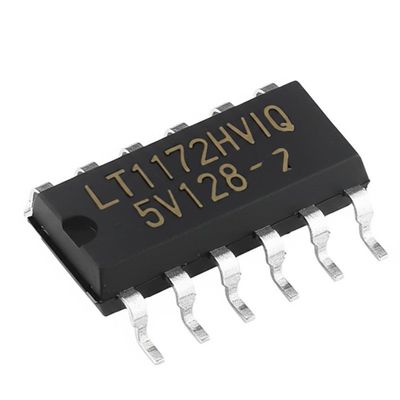

LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulator with 1.25A Output and 3V to 60V Input

LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulator with 1.25A Output and 3V to 60V Input
LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulator with 1.25A Output and 3V to 60V Input LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulator with 1.25A Output and 3V to 60V Input

Large Image :  LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulator with 1.25A Output and 3V to 60V Input

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LT1172HVIQ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: DDPAK-5
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulator with 1.25A Output and 3V to 60V Input

Description
Part Number: LT1172HVIQ Output Current:: 1.25 A
Number Of Outputs:: 1 Output Input Voltage - Min:: 3 V
Input Voltage - Max:: 60 V Quiescent Current:: 6 MA
Highlight:

100kHz High Efficiency Switching Regulator

,

1.25A Output Integrated Circuit Chip

,

3V to 60V Input LT1172HVIQ

LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulators
The LT1172HVIQ is a monolithic high-power switching regulator. It can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting, and "Cuk." The chip includes a high-current, high-efficiency switch on the die along with all oscillator, control, and protection circuitry.
Specifications
Function Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration Positive or Negative
Topology Buck, Boost, Cuk, Flyback, Forward Converter
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 60V
Voltage - Output (Min/Fixed) 1.244V
Voltage - Output (Max) 75V (Switch)
Current - Output 1.25A (Switch)
Frequency - Switching 100kHz
Features
  • Wide Input Voltage Range: 3V to 60V
  • Low Quiescent Current: 6mA
  • Internal 5A Switch
  • Shutdown Mode Draws Only 50µA Supply Current
  • Very Few External Parts Required
  • Self-Protected Against Overloads
  • Operates in Nearly All Switching Topologies
  • Flyback-Regulated Mode Has Fully Floating Outputs
  • Comes in Standard 5-Pin Packages
  • LT1172 Available in 8-Pin MiniDIP and Surface Mount Packages
  • Can Be Externally Synchronized
Applications
  • Logic Supply 5V at 10A
  • 5V Logic to ±15V Op Amp Supply
  • Battery Upconverter
  • Power Inverter (+ to -) or (- to +)
  • Fully Floating Multiple Outputs
