UCC256402ADDBR LLC Resonant Controller Integrated Circuit Chip with Ultra-Low Audible Noise Three Levels of Over Current Protection and Efficiency Exceeding DoE Level VI Standards

UCC256402ADDBR LLC Resonant Controller Integrated Circuit Chip with Ultra-Low Audible Noise Three Levels of Over Current Protection and Efficiency Exceeding DoE Level VI Standards
UCC256402ADDBR LLC Resonant Controller Integrated Circuit Chip with Ultra-Low Audible Noise Three Levels of Over Current Protection and Efficiency Exceeding DoE Level VI Standards UCC256402ADDBR LLC Resonant Controller Integrated Circuit Chip with Ultra-Low Audible Noise Three Levels of Over Current Protection and Efficiency Exceeding DoE Level VI Standards

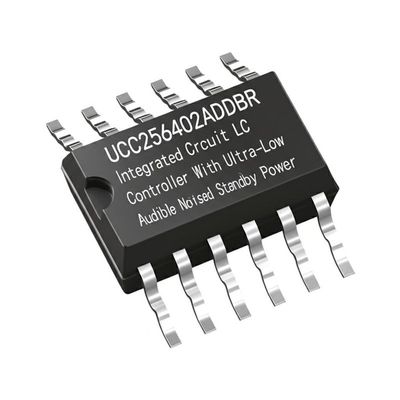

Large Image :  UCC256402ADDBR LLC Resonant Controller Integrated Circuit Chip with Ultra-Low Audible Noise Three Levels of Over Current Protection and Efficiency Exceeding DoE Level VI Standards

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: UCC256402ADDBR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-14
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

UCC256402ADDBR LLC Resonant Controller Integrated Circuit Chip with Ultra-Low Audible Noise Three Levels of Over Current Protection and Efficiency Exceeding DoE Level VI Standards

Description
Part Number: UCC256402ADDBR Number Of Outputs:: 2 Output
Switching Frequency:: 100 KHz Duty Cycle - Max:: 50 %
Output Voltage:: 12 V Output Current:: 1.2 A
Highlight:

Ultra-Low Audible Noise LLC Resonant Controller

,

Three Levels of Over Current Protection Integrated Circuit Chip

,

Efficiency Exceeding DoE Level VI Standards UCC256402ADDBR

UCC256402ADDBR Integrated Circuit Chip LLC Resonant Controller With Ultra-Low Audible Noise And Standby Power
Product Description
UCC256402ADDBR is a fully featured LLC controller with integrated high-voltage gate driver. It has been designed to pair with a PFC controller to provide a complete power system using a minimum of external components. The resulting power system is designed to meet the most stringent requirements for standby power without the need for a separate standby power converter.
Specifications
Applications Resonant Converter Controller
Voltage - Input 600V
Voltage - Supply 13V ~ 26V
Current - Supply 2.2 mA
Operating Temperature -40°C ~ 125°C (TA)
Features
  • Optimized low power mode and burst mode algorithm
    • Burst mode with Soft-ON and Soft-OFF periods
    • Minimized audible noise at no load and standby
    • User option to disable burst mode
    • Opto-coupler low power operation
    • Efficiency performance exceeds DoE Level VI and EU CoC Tier-2 External Power Supply Standards
  • Hybrid hysteretic control (HHC)
    • Best-in-class transient response
    • Fast exit from burst mode
  • Robust adaptive dead-time control
  • Integrated high-voltage gate driver with 0.6 A source and 1.2 A sink capability
  • Robust capacitive region (ZCS) avoidance scheme
  • Over temperature, output over voltage, input under voltage protection, three levels of over current protection
  • Integrated high voltage startup function
  • Active X-capacitor discharge function
Applications
  • SMPS power supply for TV
  • Lighting
  • AC-DC adapter
  • Power tools
  • Medical power supply
  • Multi-functional printer
  • Enterprise and cinema projector
  • PC power supply
  • Gaming console power supply
