953264-1 Connectors 18 Position 2.54 mm Pitch MQS Automotive Headers with 7.5A Contact Current Rating

953264-1 Connectors 18 Position 2.54 mm Pitch MQS Automotive Headers with 7.5A Contact Current Rating
953264-1 Connectors 18 Position 2.54 mm Pitch MQS Automotive Headers with 7.5A Contact Current Rating 953264-1 Connectors 18 Position 2.54 mm Pitch MQS Automotive Headers with 7.5A Contact Current Rating

Large Image :  953264-1 Connectors 18 Position 2.54 mm Pitch MQS Automotive Headers with 7.5A Contact Current Rating

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 953264-1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 18POS
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

953264-1 Connectors 18 Position 2.54 mm Pitch MQS Automotive Headers with 7.5A Contact Current Rating

Description
Part Number: 953264-1 Number Of Positions: 18 Position
Pitch: 2.54 Mm (0.1 In) Number Of Rows: 2 Row
Shrouding: Shrouded - 4 Wall Description/Function: MQS Automotive Headers
Highlight:

18 Position Automotive Headers

,

2.54 mm Pitch Connectors

,

7.5A Contact Current Rating MQS Headers

953264-1 Connectors MQS Automotive Headers 18POS Automotive Connectors
Product Description

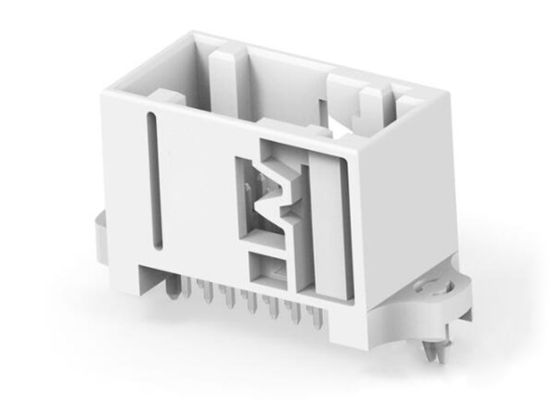

953264-1 is an 18 Position, Vertical, Wire-to-Board Micro Quadlok Series Automotive Header with 7.5A maximum contact current rating.
Specifications
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 18
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.835" (21.21mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyethylene Terephthalate (PET), Glass Filled
Features Board Guide, Board Lock
Operating Temperature -40°C ~ 85°C
Insulation Color White
Key Features
Rectangular connector shape
Fully shrouded header type
Wire-to-Board connector system
Vertical PCB mount orientation
18 signal positions in 2 rows
12V nominal voltage architecture
White primary product color
Product Image
953264-1 Connectors 18 Position 2.54 mm Pitch MQS Automotive Headers with 7.5A Contact Current Rating 0
