6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header

Large Image : 6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	6469025-1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	40POS
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header

Description

Part Number:	6469025-1	Number Of Rows:	4 Row
Number Of Positions:	40 Position	Series:	Z-PACK HM-Zd
Pitch:	0.098" (2.50mm)	Row-to-Row Spacing :	1.5 mm [ .059 in ]
Highlight:	40 Position Backplane Connector , 4 Row Backplane Connector , 0.098" Pitch Connector

6469025-1 Connectors Z-PACK High Speed Backplane Connectors 40POS Hard Metric Connectors

Product Description

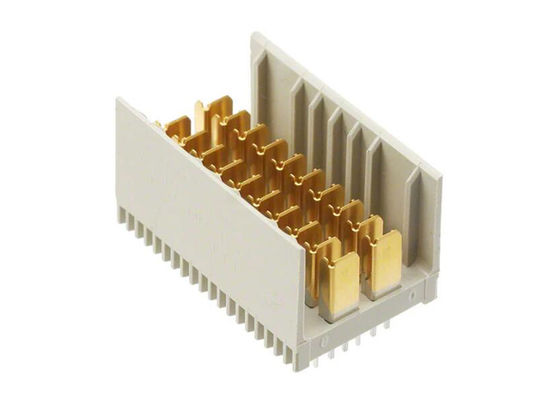

6469025-1 is a 40 Position, Z-PACK High Speed Backplane Connector featuring 4 Row, 10 Column configuration. This PCB Mount Header comes in Vertical orientation with Partially Shrouded design.

Specifications

Series	Z-PACK HM-Zd
Connector Usage	Backplane
Connector Type	Header, Male Pins and Blades
Connector Style	High Speed
Number of Positions	40
Number of Positions Loaded	All
Pitch	0.098" (2.50mm)
Number of Rows	4
Number of Columns	10
Mounting Type	Through Hole
Termination	Press-Fit
Contact Layout, Typical	40 Signal, 20 Ground
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Current Rating (Amps)	0.700A
Operating Temperature	-65°C ~ 105°C
Voltage Rating	250V

Configuration Features

Card Slot Centerline: 20.3 mm [.8 in]
Pairs per Column: 2
Number of Signal Positions: 40
Number of Ground Positions: 20
Number of Pairs: 20
Number of Positions: 40
Number of Rows: 4
Number of Columns: 10
PCB Mount Orientation: Vertical
Guide Location: Unguided

Electrical Characteristics

Operating Voltage (VAC): 250
Signal Characteristics Data Rate (Gb/s): ≤12

Contact Features

Contact Type: Pin
Contact Base Material: Phosphor Bronze
Contact Mating Area Length: 5.3 mm [.21 in]
Contact Mating Area Plating Material: Gold (Au)
Contact Layout: Matrix
Contact Mating Area Plating Material Thickness: .76 µm [30 µin]
Contact Current Rating (Max) (A): .7

Product Photo
