SJA1105QEL 5-Port Automotive Gigabit Ethernet Switch IC with 10/100/1000 Mbit/s and 1.8/2.5/3.3 V Operation

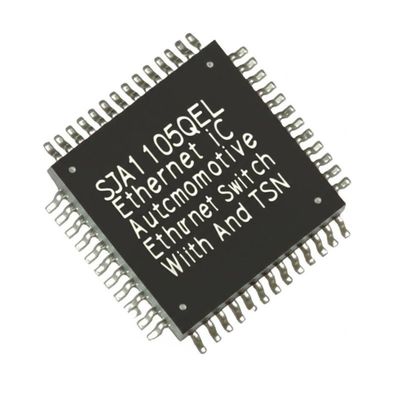

Large Image : SJA1105QEL 5-Port Automotive Gigabit Ethernet Switch IC with 10/100/1000 Mbit/s and 1.8/2.5/3.3 V Operation

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SJA1105QEL

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	LFBGA-159
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000 Pieces per Day

Contact Now

SJA1105QEL 5-Port Automotive Gigabit Ethernet Switch IC with 10/100/1000 Mbit/s and 1.8/2.5/3.3 V Operation

Description

Part Number:	SJA1105QEL	Standard::	10/100/1GBASE-TX
Number Of Transceivers::	5 Transceiver	Data Rate::	10 Mb/s, 100 Mb/s, 1 Gb/s
Interface Type::	MII, RGMII, RMII, SGMII	Operating Supply Voltage::	1.8 V, 2.5 V, 3.3 V
Highlight:	5-Port Ethernet IC , 10/100/1000 Mbit/s Automotive Ethernet Switch , 1.8/2.5/3.3 V Gigabit Ethernet Switch

SJA1105QEL Ethernet IC 5-Port Automotive Gigabit Ethernet Switch With AVB And TSN

The SJA1105QEL is a safe and secure automotive gigabit Ethernet switch that extends the capabilities of the SJA1105QEL family with improved security features, extended interface options, and ISO 26262 ASIL-A compliance. This 5-port automotive Ethernet switch supports IEEE Audio Video Bridging (AVB) and Time-Sensitive Networking (TSN) standards, with each port individually configurable for 10/100/1000 Mbit/s operation.

Specifications

Protocol	Ethernet
Function	Switch
Interface	SPI
Standards	IEEE 802.3
Voltage - Supply	1.65V ~ 3.6V
Current - Supply	3.5mA
Operating Temperature	-40°C ~ 125°C (TJ)
Package / Case	159-LFBGA
Supplier Device Package	159-LFBGA (12x12)
Grade	Automotive

Key Features

5-port store and forward architecture with individual port configuration
Independent I/O voltage domains with selectable operation voltages
Compact LFBGA159 (12 mm * 12 mm) package
Automotive Grade 2 operating temperature: -40°C to +105°C
ISO-26262, ASIL-A compliant
IEEE 802.3 compliant with 128 kB frame buffer
Support for IEEE 802.1Q VLANs (4096 VLANs supported)
Priority-based QoS handling with 8 configurable egress queues per port
Hardware support for IEEE 802.1AS timestamping and IEEE 802.1Qav AVB traffic shaping
IEEE 802.1X hardware support for enhanced security
Support for time-aware traffic (IEEE 802.1Qbv) and per-stream policing
Multiple interface options including MII/RMII/RGMII/SGMII
25 MHz system clock input with reference clock output
