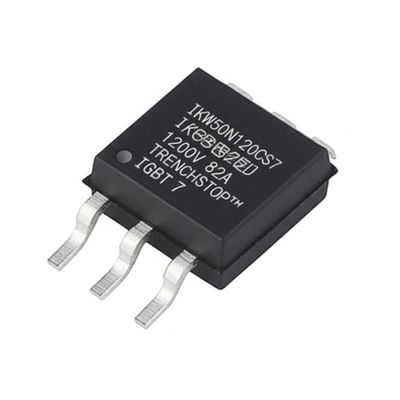

IKW50N120CS7 1200V 82A TRENCHSTOP™ IGBT Transistor Integrated Circuit Chip with Low VCEsat

Description
Part Number: IKW50N120CS7 Collector- Emitter Voltage VCEO Max: 1.2 KV
Collector-Emitter Saturation Voltage: 1.65 V Continuous Collector Current At 25℃: 82 A
Pd - Power Dissipation: 428 W Operating Temperature: -40°C ~ 175°C (TJ)
Highlight:

1200V IGBT Transistor

,

82A Integrated Circuit Chip

,

TRENCHSTOP™ IGBT

IKW50N120CS7 Integrated Circuit Chip 1200V 82A TRENCHSTOP™ IGBT 7 Transistors
Product Description
IKW50N120CS7 is a 1200V, short circuit rugged TRENCHSTOP™ IGBT 7 Transistor with anti-parallel diode in TO-247 package. This component offers low VCEsat to achieve very low conduction losses in target applications. The co-packed very soft and fast emitter controlled diode helps to minimize switching losses, contributing to overall low total losses.
Specifications
Series TRENCHSTOP™
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 82 A
Current - Collector Pulsed (Icm) 150 A
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 50A
Power - Max 428 W
Switching Energy 2.8mJ (on), 2.2mJ (off)
Input Type Standard
Gate Charge 290 nC
Td (on/off) @ 25°C 29ns/170ns
Test Condition 600V, 50A, 2.3Ohm, 15V
Reverse Recovery Time (trr) 165 ns
Operating Temperature -40°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package PG-TO247-3
Key Features
  • VCE=1200 V
  • IC=50 A
  • IGBT co-packed with full current, soft and low Qrr diode
  • Low saturation voltage VCE(sat) = 2.0 V at Tvj=175 °C
  • Optimized for hard switching topologies (2-L inverter, 3-L NPC T-type)
  • Short circuit ruggedness 8 µsec
  • Wide range of dv/dt controllability
Applications
  • In-cabin wireless charging
  • Servo motor drive and control
  • 1-phase string inverter solutions
  • Motor control
  • Uninterruptible power supplies (UPS)
Other Electronic Components In Stock
Part Number Package
CY8C4148AZSS565 TQFP-64
CYW88570CWBGT QFP
CYW89570DCWBGT QFP
IAUCN04S7L019 TDSON-8
IAUCN04S7N020 TDSON-8
IPD50N10S3L16 TO-252
IRLB3036PBF TO-220-3
IPB70N10S312 TO-263
IRF7465TRPBF SOIC-8
CY7C6521024LQXS QFN
CY7C6522324LQXST QFN
CY8C4147AZES548 100-TQFP
CY8C4147AZES558 100-TQFP
CY8C4147AZES568 100-TQFP
CY8C4147AZES575 TQFP-64
CY8C4147AZSS558 100-TQFP
CY8C4147AZSS575 TQFP-64
CY91F487TPMC-G-UJE1 100-LQFP
CY8C4149LDSS583 48-QFN
IAUCN10S5L094D TDSON-8
BTS500071LUA PG-HSOF-8
FF900R12IP4B60 MODULE
FF1000R17IE4B60 MODULE
IR3899AMTRPBF PQFN-15
FF900R12IP4PB60 MODULE
IPP034N08N5 TO-220-3
IRFB4229PBF TO-220-3
IRFB5615PBF TO-220-3
CY8C4148LDAS563 48-QFN
CY8C4148LDS-S553 48-QFN
Frequently Asked Questions
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample? Is the sample free?
A: Yes, we support sample order and small order. Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
