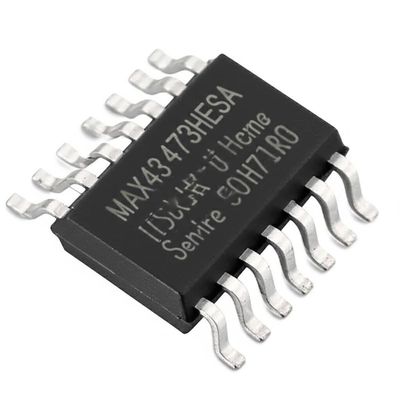

MAX4373HESA Integrated Circuit Chip 200kHz High Side Current Sense Amplifier SOIC8 with 2.7V to 28V Supply

MAX4373HESA Integrated Circuit Chip 200kHz High Side Current Sense Amplifier SOIC8 with 2.7V to 28V Supply
MAX4373HESA Integrated Circuit Chip 200kHz High Side Current Sense Amplifier SOIC8 with 2.7V to 28V Supply MAX4373HESA Integrated Circuit Chip 200kHz High Side Current Sense Amplifier SOIC8 with 2.7V to 28V Supply

Large Image :  MAX4373HESA Integrated Circuit Chip 200kHz High Side Current Sense Amplifier SOIC8 with 2.7V to 28V Supply

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MAX4373HESA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

MAX4373HESA Integrated Circuit Chip 200kHz High Side Current Sense Amplifier SOIC8 with 2.7V to 28V Supply

Description
Part Number: MAX4373HESA Input Offset Voltage (max): 1mV
Full-Scale Accuracy (max): 2% Supply Current: 50µA
Single Operating Supply: 2.7V To 28V Applications: Current Sensing, Power Management
Highlight:

200kHz Integrated Circuit Chip

,

SOIC8 Current Sense Amplifier

,

2.7V to 28V Supply MAX4373HESA

MAX4373HESA Integrated Circuit Chip 200kHz High Side Current Sense Amplifiers SOIC8
Product Description
The MAX4373HESA is a low-cost, micropower, high-side current-sense supervisor containing a high-side current-sense amplifier, bandgap reference, and comparator with latching output. This voltage output device eliminates the need for gain-setting resistors, making it ideal for notebook computers, cell phones, and other systems requiring precise battery/DC current monitoring. Operating from a single +2.7V to +28V supply with just 50µA current consumption, it's specified for extended temperature ranges (-40°C to +85°C) and comes in an 8-pin SOIC package.
Specifications
Number of Channels 1 Channel
GBP - Gain Bandwidth Product 200 kHz
Vcm - Common Mode Voltage 0 V to 28 V
CMRR - Common Mode Rejection Ratio 85 dB
Ib - Input Bias Current 4 uA
Vos - Input Offset Voltage 100 uV
Supply Voltage - Max 28 V
Supply Voltage - Min 2.7 V
Operating Supply Current 50 uA
Gain Error 0.3 %
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +85 ℃
Mounting Style SMD/SMT
Package / Case SOIC-8
Key Features
  • Integrated current-sensing solution simplifies high-side current monitoring
  • Current-sense amplifier plus internal comparator and bandgap reference with improved accuracy
  • 1mV (max) input offset voltage
  • 2% (max) full-scale accuracy
  • Internal bandgap reference (±1.6% accuracy)
  • High accuracy +2V to +28V common-mode range, functional down to 0V
  • Low power consumption extends battery life (50µA supply current)
  • Single +2.7V to +28V operating supply
  • Latching comparator output eliminates oscillation
  • Three gain versions (+20V/V, +50V/V, +100V/V) support different size battery packs
Applications
  • Cell phones
  • General-system/board-level current monitoring
  • Notebook computers
  • Portable battery-powered systems
  • Power-management systems
  • Precision current sources
  • Smart battery packs/chargers
Other Electronic Components In Stock
Part Number Package
BTS500071LUA PG-HSOF-8
FF900R12IP4B60 MODULE
FF1000R17IE4B60 MODULE
IR3899AMTRPBF PQFN-15
FF900R12IP4PB60 MODULE
IPP034N08N5 TO-220-3
IRFB4229PBF TO-220-3
IRFB5615PBF TO-220-3
CY8C4148LDAS563 48-QFN
CY8C4148LDS-S553 48-QFN
CY8C4148LDSS573 48-QFN
CY8C4149AZAS548 100-TQFP
CY8C4149AZAS575 64-TQFP
CY8C4149AZES555 64-TQFP
CY8C4149AZES575 64-TQFP
CY8C4149AZES578 100-TQFP
CY8C4149AZES588 100-TQFP
CY8C4149AZSS558 100-TQFP
CY8C4149LDAS543 48-QFN
CY8C4149LDSS573 48-QFN
CY7C6521024LQXST QFN-24
CY7C65211A24LQXST QFN-24
CY8C4147AZA-S555 64-TQFP
FF1400R12IP4B60 MODULE
BSZ105N04NSG TSDSON-8
IRFB3077PBF TO-220-3
FF1400R17IP4B60 MODULE
FF600R12IP4PB60 MODULE
CY8C4147AZES585 64-TQFP
CY8C4147AZSS565 64-TQFP
Frequently Asked Questions
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample? Is the sample free?
A: Yes, we support sample order and small order. Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
