TAS5760MDAPR Integrated Circuit Chip Class-D Amplifier with 55.2 W Output Power 0.03% THD plus Noise and 4 Ohms Load Impedance

TAS5760MDAPR Integrated Circuit Chip Class-D Amplifier with 55.2 W Output Power 0.03% THD plus Noise and 4 Ohms Load Impedance
TAS5760MDAPR Integrated Circuit Chip Class-D Amplifier with 55.2 W Output Power 0.03% THD plus Noise and 4 Ohms Load Impedance TAS5760MDAPR Integrated Circuit Chip Class-D Amplifier with 55.2 W Output Power 0.03% THD plus Noise and 4 Ohms Load Impedance

Large Image :  TAS5760MDAPR Integrated Circuit Chip Class-D Amplifier with 55.2 W Output Power 0.03% THD plus Noise and 4 Ohms Load Impedance

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TAS5760MDAPR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HTSSOP-32
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TAS5760MDAPR Integrated Circuit Chip Class-D Amplifier with 55.2 W Output Power 0.03% THD plus Noise and 4 Ohms Load Impedance

Description
Part Number: TAS5760MDAPR Class:: Class-D
Output Power:: 55.2 W THD Plus Noise:: 0.03 %
Audio - Load Impedance:: 4 Ohms Unit Weight:: 181.100 Mg
Highlight:

55.2 W Output Power Class-D Amplifier

,

0.03% THD plus Noise Integrated Circuit Chip

,

4 Ohms Load Impedance TAS5760MDAPR

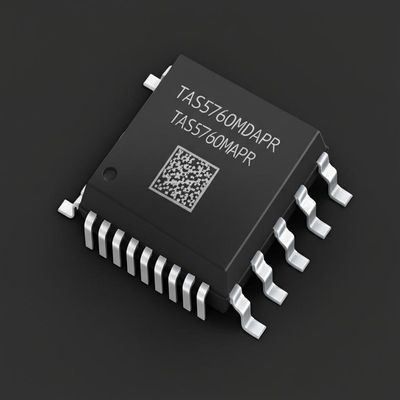

TAS5760MDAPR Integrated Circuit Chip General Purpose I2S Input Class-D Amplifier
The TAS5760MDAPR is a stereo I2S input device featuring both hardware and software (I²C) control modes. It includes an integrated digital clipper, multiple gain options, and operates across a wide power supply range of 4.5 to 24 VDC, making it suitable for diverse applications.
Specifications
Type Class D
Output Type 1-Channel (Mono) or 2-Channel (Stereo)
Max Output Power x Channels @ Load 55.2W x 1 @ 4Ohm, 63.5W x 2 @ 4Ohm
Voltage - Supply 2.8V ~ 3.63V, 4.5V ~ 26.4V
Features Depop
Mounting Type Surface Mount
Operating Temperature -25°C ~ 85°C (TA)
Key Features
  • Audio Performance (PVDD = 19 V, RSPK = 8 Ω, SPK_GAIN[1:0] Pins = 01):
    • Idle Channel Noise = 100 µVrms (A-Wtd)
    • THD+N = 0.03% (at 1 W, 1 kHz)
    • SNR = 105 dB A-Wtd (Ref. to THD+N = 1%)
  • Audio I/O Configuration:
    • Single Stereo I²S Input
    • Stereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) Operation
    • 32, 44.1, 48, 88.2, 96 kHz Sample Rates
  • General Operational Features:
    • Selectable Hardware or Software Control
    • Integrated Digital Output Clipper
    • Programmable I²C Address
    • Closed-Loop Amplifier Architecture
    • Adjustable Switching Frequency for Speaker Amplifier
  • Robustness Features:
    • Clock Error, DC, and Short-Circuit Protection
    • Overtemperature and Programmable Overcurrent Protection
Applications
  • LCD/LED TV and Multipurpose Monitors
  • Sound Bars, Docking Stations, PC Audio
  • General-Purpose Audio Equipment
