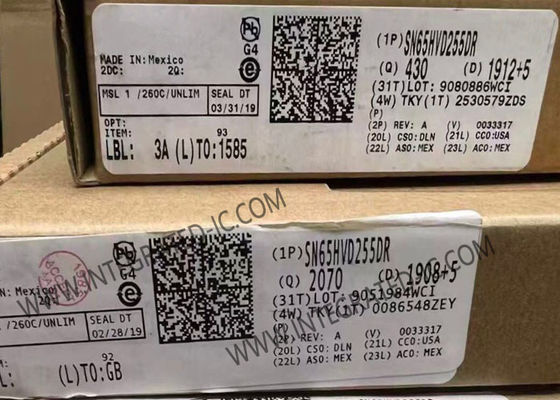

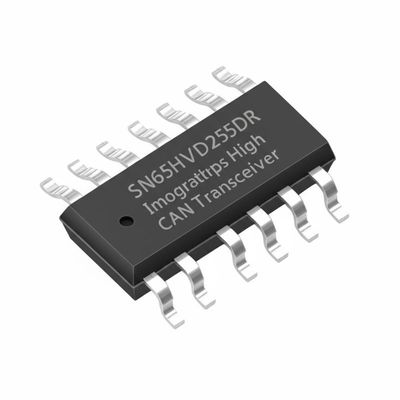

SN65HVD255DR Integrated Circuit Chip 1Mbps High Speed CAN Transceiver with ISO1189-2 Compliance and 12 kV ESD Protection

SN65HVD255DR Integrated Circuit Chip 1Mbps High Speed CAN Transceiver with ISO1189-2 Compliance and 12 kV ESD Protection
SN65HVD255DR Integrated Circuit Chip 1Mbps High Speed CAN Transceiver with ISO1189-2 Compliance and 12 kV ESD Protection SN65HVD255DR Integrated Circuit Chip 1Mbps High Speed CAN Transceiver with ISO1189-2 Compliance and 12 kV ESD Protection

Large Image :  SN65HVD255DR Integrated Circuit Chip 1Mbps High Speed CAN Transceiver with ISO1189-2 Compliance and 12 kV ESD Protection

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SN65HVD255DR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

SN65HVD255DR Integrated Circuit Chip 1Mbps High Speed CAN Transceiver with ISO1189-2 Compliance and 12 kV ESD Protection

Description
Part Number: SN65HVD255DR Data Rate: 1 Mb/s
Operating Supply Current: 130 MA ESD Protection: 12 KV
Operating Temperature: -40°C ~ 125°C Type: High Speed CAN Transceiver
Highlight:

1Mbps High Speed CAN Transceiver

,

ISO1189-2 Compliant Integrated Circuit Chip

,

12 kV ESD Protection SN65HVD255DR

SN65HVD255DR Integrated Circuit Chip 1Mbps High Speed CAN Transceiver SOIC8
Product Description
The SN65HVD255DR CAN transceiver meets the ISO1189-2 High Speed CAN (Controller Area Network) Physical Layer standard. Designed for data rates exceeding 1 Mbps in short networks, it provides enhanced timing margin and higher data rates in long and highly-loaded networks. This device includes multiple protection features to enhance device and CAN-network robustness, along with additional features for designing redundant and multitopology networks with fault indication for improved functional safety.
Specifications
Type Transceiver
Protocol CANbus
Number of Drivers/Receivers 1/1
Duplex Half
Receiver Hysteresis 200 mV
Data Rate 1Mbps
Voltage - Supply 4.5V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Key Features
  • Meets ISO11898-2 requirements
  • Turbo CAN technology for enhanced timing margin
  • Supports 3.3-V and 5-V MCUs
  • Ideal passive behavior when unpowered
  • Operates from -40°C to 125°C
Protection Features
  • HBM ESD protection exceeds ±12 kV
  • Bus fault protection (-27V to 40V)
  • Undervoltage protection on supply pins
  • Driver dominant time out (TXD DTO)
  • Thermal shutdown protection
Applications
  • 1Mbps operation in highly loaded CAN networks
  • Industrial automation, control, sensors, and drive systems
  • Building, security, and climate control automation
  • Telecom base station status and control
  • Functional safety with redundant and multitopology CAN networks
