PSAS5M2130121TR Connectors Fork-Lock Hold Down PCIe/SAS Connector 68POS

PSAS5M2130121TR Connectors Fork-Lock Hold Down PCIe/SAS Connector 68POS
PSAS5M2130121TR Connectors Fork-Lock Hold Down PCIe/SAS Connector 68POS PSAS5M2130121TR Connectors Fork-Lock Hold Down PCIe/SAS Connector 68POS

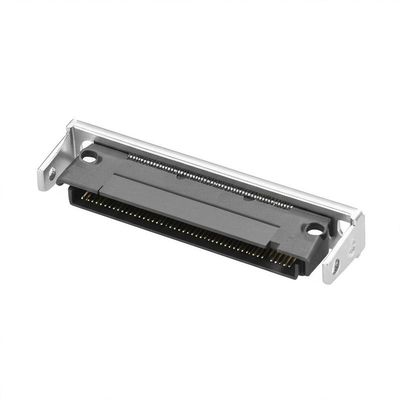

Large Image :  PSAS5M2130121TR Connectors Fork-Lock Hold Down PCIe/SAS Connector 68POS

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: PSAS5M2130121TR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 68POS
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

PSAS5M2130121TR Connectors Fork-Lock Hold Down PCIe/SAS Connector 68POS

Description
Part Number: PSAS5M2130121TR Current Rating: 1.5A
Operating Temperature Range: -55°C To +105°C Resistance (Insulation): 1000MΩ
Voltage Rating: 30V Data Rate: 32Gb/s
Highlight:

68POS PCIe/SAS Connector

,

32Gb/s Data Rate PCIe/SAS Connector

,

1.5A Current Rating PCIe/SAS Connector

PSAS5M2130121TR Connectors Fork-Lock Hold Down PCIe/SAS Connector 68POS
PSAS5M2130121TR is a Right Angle Fork-Lock Hold Down PCIe/SAS Connector designed for high-performance applications.
Product Specifications
Specification Value
Contacts 68
Rows 2
Color - Housing Black
Connector Type Dual Row
Current Rating 1.5A
Current Rating (Power) 1.5A/Contact
Current Rating (Signal) 0.5A/Contact
Data Rate 32Gb/s
Dielectric Withstanding Voltage 500V AC rms
Differential Impedance 85Ω
Durability (Mating cycles) 500
Gender Header
Hold Down SMT Holdown
Locating Pegs Plastic peg
Material Contact Copper Alloy
Material Housing High Temperature Black Thermoplastic
Number of Channels 6
Number of Signal Pairs 8 or 12
Operating Temperature Range -55°C to +105°C
Orientation Right Angle
Packaging Tape and Reel
PCB Thickness 0.80mm (0.031in)
Pitch 0.80mm (0.031in)|1.27mm (0.050in)
Plating Contact area 0.76μm (30μin) Gold
Ports 1
Product Compliance/Standards SFF 8639
Product Series PSAS
Resistance (Contact) 30mΩ
Resistance (Insulation) 1000MΩ
Retention Feature Fork Lock/Harpoon
Tail Plating Matte Tin
Termination Style Surface Mount
UL file number E232356
Vacuum Pick-up Cap Yes
Voltage Rating 30V
