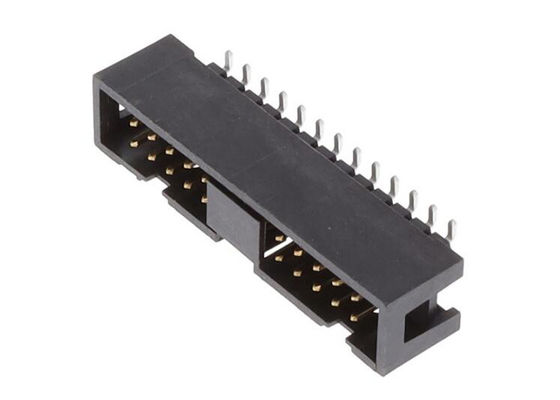

52601-G26-8TLF 26 Position 2 Row 2.54 mm Pitch Quickie Shrouded Header Connector for Flat Cable-to-Board

52601-G26-8TLF 26 Position 2 Row 2.54 mm Pitch Quickie Shrouded Header Connector for Flat Cable-to-Board
52601-G26-8TLF 26 Position 2 Row 2.54 mm Pitch Quickie Shrouded Header Connector for Flat Cable-to-Board 52601-G26-8TLF 26 Position 2 Row 2.54 mm Pitch Quickie Shrouded Header Connector for Flat Cable-to-Board

Large Image :  52601-G26-8TLF 26 Position 2 Row 2.54 mm Pitch Quickie Shrouded Header Connector for Flat Cable-to-Board

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 52601-G26-8TLF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 26POS
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

52601-G26-8TLF 26 Position 2 Row 2.54 mm Pitch Quickie Shrouded Header Connector for Flat Cable-to-Board

Description
Part Number: 52601-G26-8TLF Number Of Positions: 26 Position
Number Of Rows: 2 Row Pitch: 2.54 Mm (0.1 In)
Mating Post Length: 5.84 Mm (0.23 In) Current Rating: 3 A
Highlight:

26 Position Quickie Shrouded Header

,

2 Row Connector

,

2.54 mm Pitch Header

52601-G26-8TLF Connectors 26POS Quickie Shrouded Headers Low Profile
Product Description
52601-G26-8TLF is Quickie Shrouded Headers Low Profile, a complete solution for flat cable-to-board connections using 2.54mm pitch IDC technology.
Specifications
Series Quickie™
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.365" (9.27mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Features Pick and Place
Operating Temperature -65°C ~ 105°C
Contact Finish Thickness - Post 100.0µin (2.54µm)
Features
  • Four-walled shrouded headers
  • Low profile headers with side window
  • Selective plated pins of headers
  • According to DIN 41651, HE10 and BT D2632
  • Protect pins in unmated condition and prevents misalignment
  • Enables unique locking through latching strain relief
  • Cost efficient, while maintaining excellent performance
Applications
  • Electronic Control Systems
  • Servers
  • Communication Equipment
  • Industrial Automation
  • Instrumentation
  • Vending Machines
  • Medical
