TMA0505S Miniature Isolated 1W DC DC Converter with 5VDC Output and 200mA Current

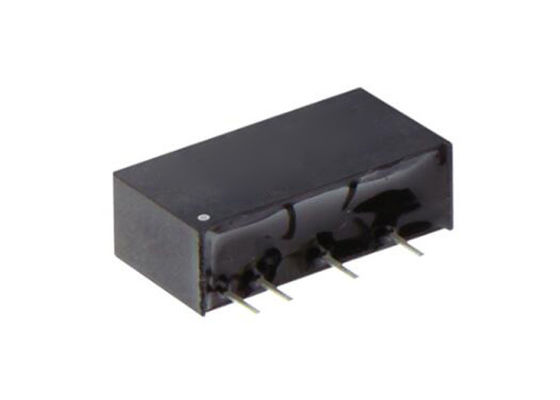

Large Image : TMA0505S Miniature Isolated 1W DC DC Converter with 5VDC Output and 200mA Current

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TMA0505S

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SIP-6
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TMA0505S Miniature Isolated 1W DC DC Converter with 5VDC Output and 200mA Current

Description

Part Number:	TMA0505S	Output Voltage:	5 VDC
Power Rating:	1 W	Output Current:	200 MA
Capacitive Load:	220 µF	Input Voltage:	4.5-5.5 VDC
Highlight:	1W DC DC Converter , 5VDC Power Module , 200mA Isolated Converter

TMA0505S Integrated Circuit Chip TMA Series Miniature Isolated 1W DC DC Converters

Product Description

TMA0505S is a miniature, isolated 1W DC/DC converter in a Single-in-Line package (SIP). Requiring only 1.2 cm² board space, it offers an ideal solution for space-critical applications in board-level power distribution. The use of SMD technology enables high performance at low cost.

Specifications

Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Operating Temperature	-40°C ~ 85°C (With Derating)
Efficiency	71%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm)

Key Features

Four-walled shrouded headers
Low profile headers with side window
Selective plated pins of headers
Compliant with DIN 41651, HE10 and BT D2632 standards
Protects pins in unmated condition and prevents misalignment
Enables unique locking through latching strain relief
Cost efficient while maintaining excellent performance
