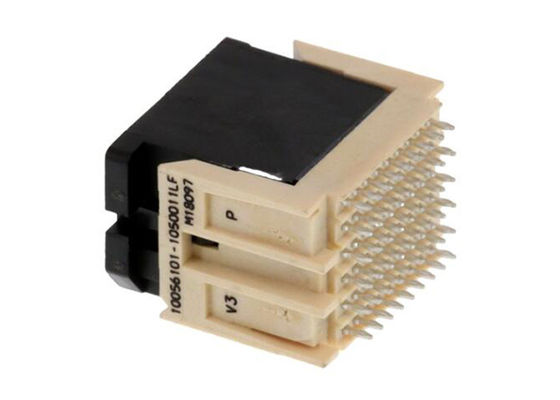

10056101-1050011LF 54 Position 9 Row AirMax VS High Speed Backplane Connectors with 0.079" (2.00mm) Pitch

10056101-1050011LF 54 Position 9 Row AirMax VS High Speed Backplane Connectors with 0.079" (2.00mm) Pitch
10056101-1050011LF 54 Position 9 Row AirMax VS High Speed Backplane Connectors with 0.079" (2.00mm) Pitch 10056101-1050011LF 54 Position 9 Row AirMax VS High Speed Backplane Connectors with 0.079" (2.00mm) Pitch

Large Image :  10056101-1050011LF 54 Position 9 Row AirMax VS High Speed Backplane Connectors with 0.079" (2.00mm) Pitch

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 10056101-1050011LF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 54POS
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

10056101-1050011LF 54 Position 9 Row AirMax VS High Speed Backplane Connectors with 0.079" (2.00mm) Pitch

Description
Part Number: 10056101-1050011LF Number Of Positions: 54 Position
Number Of Rows: 9 Row Series: AirMax VS
Pitch: 0.079" (2.00mm) Operating Temperature: -55°C ~ 85°C
Highlight:

54 Position AirMax VS Connectors

,

9 Row High Speed Backplane Connectors

,

0.079" Pitch Backplane Connectors

10056101-1050011LF Connectors 54POS AirMax VS High Speed Backplane Connectors
Product Description

The 10056101-1050011LF is a 54-position AirMax VS® High Speed Backplane Connector featuring a 3-Pair, 2mm pitch, 6-column vertical header design. This connector supports data rates up to 25Gb/s while delivering excellent signal integrity, design flexibility, and a wide range of configuration options.

Specifications
Series Airmax VS®
Connector Type Header, Male Pins
Connector Style High Speed
Number of Positions 54
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 9
Number of Columns 6
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold
Operating Temperature -55°C ~ 85°C
Key Features
  • Supports data rates up to 25Gb/s
  • Shield-less design for enhanced performance
  • Fully tooled signal, power and guide system
  • Available in 3-4-5 pairs with different columns
  • Backward compatible between VS/VS2 and VS2/VSE
  • FMLB design for improved functionality
  • GXT+ version in signal, Low Halogen version in power
  • Integrated guide with 2 walls option
Product Portfolio
  • Right angle to vertical backplane in both inverse and standard genders
  • Right angle to right angle for standard coplanar and inverse coplanar configurations
  • Integrated guide pin option available
  • Power connectors supporting up to 160A/port, compliant with industrial standards
  • Reliable guide system providing complete signal, power and mechanical guide solution

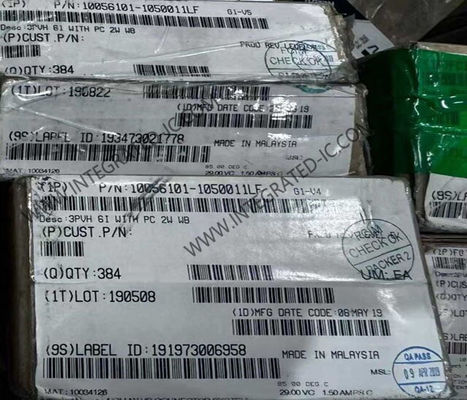

Product Image
10056101-1050011LF 54 Position 9 Row AirMax VS High Speed Backplane Connectors with 0.079" (2.00mm) Pitch 0
