BSC320N20NS3G Integrated Circuit Chip 200V N-Channel OptiMOS™ Power MOSFET Transistor with 36A Continuous Drain Current and 32 mOhms Drain-Source Resistance

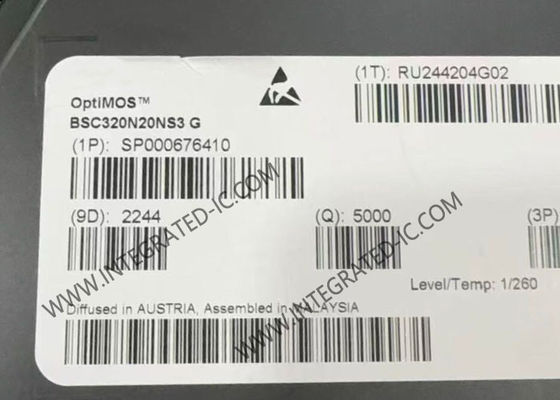

Large Image : BSC320N20NS3G Integrated Circuit Chip 200V N-Channel OptiMOS™ Power MOSFET Transistor with 36A Continuous Drain Current and 32 mOhms Drain-Source Resistance

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	BSC320N20NS3G

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TDSON-8
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

BSC320N20NS3G Integrated Circuit Chip 200V N-Channel OptiMOS™ Power MOSFET Transistor with 36A Continuous Drain Current and 32 mOhms Drain-Source Resistance

Description

Part Number:	BSC320N20NS3G	Vds - Drain-Source Breakdown Voltage::	200 V
Id - Continuous Drain Current::	36 A	Rds On - Drain-Source Resistance::	32 MOhms
Vgs - Gate-Source Voltage::	- 20 V, + 20 V	Vgs Th - Gate-Source Threshold Voltage::	4 V
Highlight:	200V Drain-Source Breakdown Voltage Power MOSFET Transistor , 36A Continuous Drain Current Integrated Circuit Chip , 32 mOhms Drain-Source Resistance OptiMOS™ MOSFET

BSC320N20NS3G Integrated Circuit Chip 200V N-Channel OptiMOS™ Power MOSFET Transistor

Product Description

BSC320N20NS3G 200V OptiMOS™ products are performance-leading benchmark technologies, perfectly suited for synchronous rectification in 48V systems, DC-DC converters, uninterruptible power supplies (UPS), and inverters for DC motor drives.

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	32mOhm @ 36A, 10V
Vgs(th) (Max) @ Id	4V @ 90µA
Gate Charge (Qg) (Max) @ Vgs	29 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2350 pF @ 100 V
Power Dissipation (Max)	125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)

Features

N-channel, normal level
Excellent gate charge X RDs(on) product (FOM)
Very low on-resistance Ros(on)
Pb-free lead plating; RoHS compliant
Qualified according to JEDEC1 for target application
Halogen-free according to IEC61249-2-21
Ideal for high-frequency switching and synchronous rectification

Benefits

Highest efficiency
Highest power density
Lowest board space consumption
Minimal device paralleling required

Applications

EV charging
DIN rail power supply solutions
48 V intermediate bus converter (IBC)
Telecommunications infrastructure
Uninterruptible power supplies (UPS)
