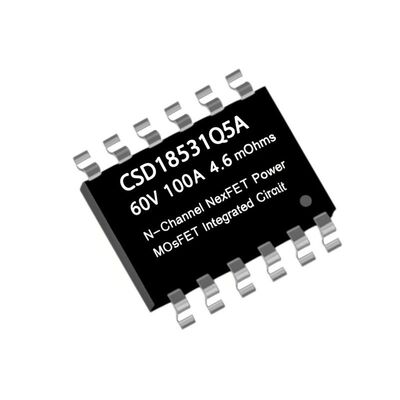

CSD18531Q5A 60V 100A 4.6 mOhms N-Channel NexFET Power MOSFET Integrated Circuit Chip

CSD18531Q5A 60V 100A 4.6 mOhms N-Channel NexFET Power MOSFET Integrated Circuit Chip
CSD18531Q5A 60V 100A 4.6 mOhms N-Channel NexFET Power MOSFET Integrated Circuit Chip

Large Image :  CSD18531Q5A 60V 100A 4.6 mOhms N-Channel NexFET Power MOSFET Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: CSD18531Q5A
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VSONP-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

CSD18531Q5A 60V 100A 4.6 mOhms N-Channel NexFET Power MOSFET Integrated Circuit Chip

Description
Part Number: CSD18531Q5A Vds - Drain-Source Breakdown Voltage: 60 V
Id - Continuous Drain Current: 100 A Qg - Gate Charge: 36 NC
Rds On - Drain-Source Resistance: 4.6 MOhms Pd - Power Dissipation: 156 W
Highlight:

60V Power MOSFET

,

100A NexFET

,

4.6 mOhms Integrated Circuit Chip

CSD18531Q5A Integrated Circuit Chip 60V N-Channel NexFET Power MOSFET Transistors
CSD18531Q5A Integrated Circuit Chip 60V N-Channel NexFET Power MOSFET Transistors

CSD18531Q5A is a 60V, 3.5mΩ, 5mm * 6mm NexFET™ power MOSFET transistor designed to minimize losses in power conversion applications.
Specifications
Series NexFET™
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 19A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 4.6mOhm @ 22A, 10V
Vgs(th) (Max) @ Id 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 43 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 3840 pF @ 30 V
Power Dissipation (Max) 3.1W (Ta), 156W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-VSONP (5x6)
Package / Case 8-PowerTDFN
Features
  • Ultra-Low Qg and Qgd
  • Low-Thermal Resistance
  • Avalanche Rated
  • Logic Level
  • Lead-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5-mm * 6-mm Plastic Package
Applications
  • DC-DC Conversion
  • Secondary Side Synchronous Rectifier
  • Battery Motor Control
