STD18N60M6 600V 13A 280mOhm Power MOSFET N-Channel Transistor with MDmesh M6 Technology

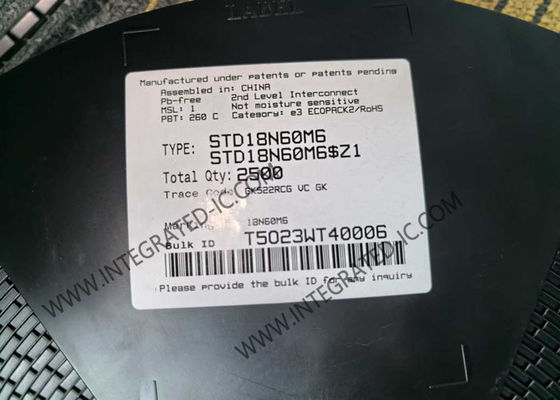

Large Image : STD18N60M6 600V 13A 280mOhm Power MOSFET N-Channel Transistor with MDmesh M6 Technology

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	STD18N60M6

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	DPAK-3 (TO-252-3)
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

STD18N60M6 600V 13A 280mOhm Power MOSFET N-Channel Transistor with MDmesh M6 Technology

Description

Part Number:	STD18N60M6	Vds - Drain-Source Breakdown Voltage:	600 V
Id - Continuous Drain Current:	13 A	Rds On - Drain-Source Resistance:	280 MOhms
Qg - Gate Charge:	16.8 NC	Pd - Power Dissipation:	110 W
Highlight:	600V Power MOSFET , 13A MOSFET Transistor , 280mOhm N-Channel MOSFET

STD18N60M6 Integrated Circuit Chip 600V MDmesh M6 N-Channel Power MOSFET Transistors

Product Description

STD18N60M6 is a 600V, 13A, MDmesh™ M6 Series N-channel Power MOSFET Transistor in a DPAK package.

Specifications

Series	MDmesh™ M6
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	280mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id	4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16.8 nC @ 10 V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	650 pF @ 100 V
Power Dissipation (Max)	110W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252 (DPAK)
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63

Features

Reduced switching losses
Lower RDS(on) per area vs previous generation
Low gate input resistance
100% avalanche tested
Zener-protected

Applications

Switching applications
LLC converters
Boost PFC converters
