RTL8761BUV-CG BT IC Dual Mode BT 5 Transceiver Controller Chip with USB Interface and 4mm x 4mm Size

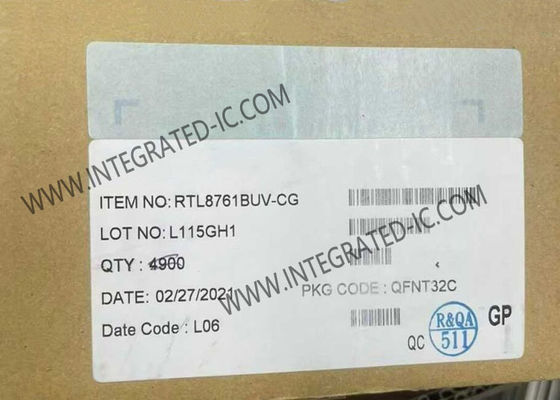

Large Image : RTL8761BUV-CG BT IC Dual Mode BT 5 Transceiver Controller Chip with USB Interface and 4mm x 4mm Size

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	RTL8761BUV-CG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-32
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

RTL8761BUV-CG BT IC Dual Mode BT 5 Transceiver Controller Chip with USB Interface and 4mm x 4mm Size

Description

Part Number:	RTL8761BUV-CG	Interface:	USB Interface
Tx Power:	Up To 10dBm	EDR Receiver Sensitivity:	-94.5dBm
Size:	4mm X 4mm	Type:	BT 5 BR/EDR/LE Transceiver Controller Chip
Highlight:	Up to 10dBm Tx Power BT IC , -94.5dBm EDR Receiver Sensitivity Bluetooth Transceiver Controller Chip , 4mm x 4mm Size Dual Mode BT 5 Chip

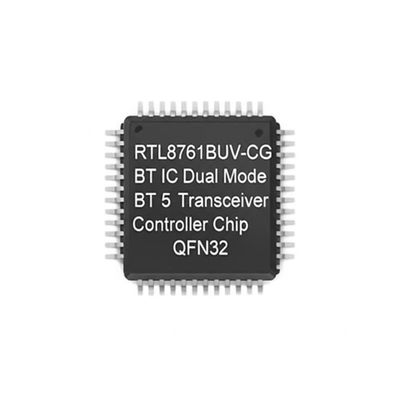

RTL8761BUV-CG BT IC Dual Mode BT 5 Transceiver Controller Chip QFN32

The RTL8761BUV-CG is a highly integrated Dual Mode BT 5 Transceiver controller chip with USB interface. This chip combines BT Protocol Stack (LM, LL, and LE), BT Baseband, modem, and BT RF in a single package.

The RTL8761BUV-CG complies with BT core specification v5 and supports dual mode (BR/EDR+Low Energy Controllers), maintaining compatibility with previous versions including v2.1+ LE. For BR/EDR, it allows multiple active links in either slave or master mode. For Low Energy, it supports multiple states and allows multiple active links in slave mode, with the capability to maintain both BR/EDR and LE links simultaneously.

Ideal for host devices including PC, TV, OTT Box, Broadband, and Automotive applications.

Specifications

Part Number	RTL8761BUV-CG
Interface	USB Interface
Package	QFN32
Size	4mm x 4mm
Tx Power	Up to 10dBm
EDR Receiver Sensitivity	-94.5dBm
Type	BT 5 BR/EDR/LE Transceiver Controller chip

Key Features

Excellent Compatibility: Widely used in OTT/PC and other devices with proven interoperability
Multi-mode Operation: Supports BR/EDR/BLE Master/Slave Mode
Versatile Applications: USB/UART interfaces suitable for PC Dongle, TV, OTT, and Broadband devices
Superior RF Performance: Tx Power up to 10dBm with -94.5dBm 2M EDR receiver sensitivity
Expandable: Supports External PA for enhanced Tx power
