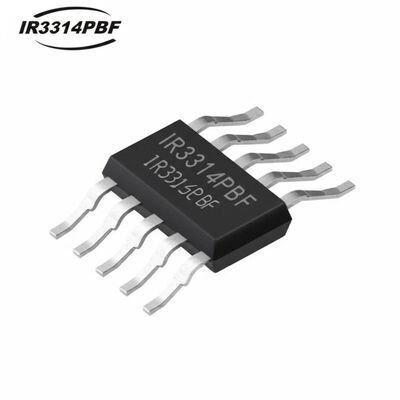

IR3314PBF Integrated Circuit Chip High Side Switch with 18A Programmable Current Sense 6V to 32V and 2W Power Dissipation

IR3314PBF Integrated Circuit Chip High Side Switch with 18A Programmable Current Sense 6V to 32V and 2W Power Dissipation
IR3314PBF Integrated Circuit Chip High Side Switch with 18A Programmable Current Sense 6V to 32V and 2W Power Dissipation IR3314PBF Integrated Circuit Chip High Side Switch with 18A Programmable Current Sense 6V to 32V and 2W Power Dissipation

Large Image :  IR3314PBF Integrated Circuit Chip High Side Switch with 18A Programmable Current Sense 6V to 32V and 2W Power Dissipation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IR3314PBF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-220-5
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IR3314PBF Integrated Circuit Chip High Side Switch with 18A Programmable Current Sense 6V to 32V and 2W Power Dissipation

Description
Part Number: IR3314PBF Output Current: 18 A
Supply Voltage: 6V ~ 32V Pd - Power Dissipation: 2 W
Number Of Outputs: 1 Output Operating Temperature (Min): -40℃
Highlight:

18A Integrated Circuit Chip

,

6V to 32V High Side Switch

,

2W Power Dissipation Programmable Current Sense

IR3314PBF Integrated Circuit Chip 18A Programmable Current Sense High Side Switch
Product Description
The IR3314PBF is a fully protected programmable current sense high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin exceeds the specified threshold, the output power Mosfet activates. When Vcc - Vin falls below the specified Vil threshold, the output Mosfet deactivates.
Specifications
Product Half-Bridge Drivers
Type High-Side
Mounting Style Through Hole
Package / Case TO-220-5
Number of Outputs 1 Output
Output Current 18 A
Supply Voltage - Min 6 V
Supply Voltage - Max 32 V
Rise Time 8 us
Fall Time 20 us
Minimum Operating Temperature -40℃
Pd - Power Dissipation 2 W
Key Features
  • Load current feedback
  • Programmable over current shutdown
  • Active clamp
  • ESD protection
  • Input referenced to Vcc
  • Over temperature shutdown
  • Reverse battery protection
  • Lead-Free
