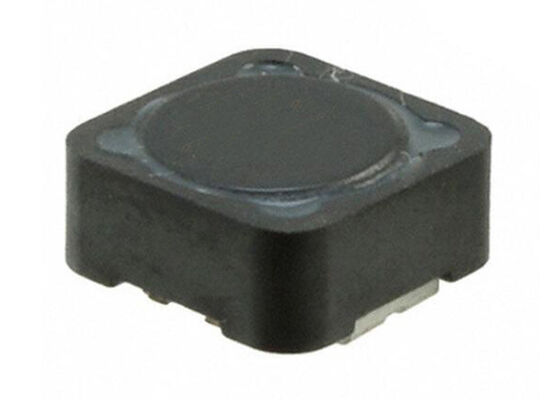

7447709102 Wirewound Inductor with 1 mH Inductance 900mA Maximum DC Current and Shielded Drum Core

7447709102 Wirewound Inductor with 1 mH Inductance 900mA Maximum DC Current and Shielded Drum Core
7447709102 Wirewound Inductor with 1 mH Inductance 900mA Maximum DC Current and Shielded Drum Core 7447709102 Wirewound Inductor with 1 mH Inductance 900mA Maximum DC Current and Shielded Drum Core

Large Image :  7447709102 Wirewound Inductor with 1 mH Inductance 900mA Maximum DC Current and Shielded Drum Core

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 7447709102
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SMD
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

7447709102 Wirewound Inductor with 1 mH Inductance 900mA Maximum DC Current and Shielded Drum Core

Description
Part Number: 7447709102 Inductance: 1 MH
Tolerance: 20 % Maximum DC Current: 900 MA
Saturation Current: 1 A Self Resonant Frequency: 1 MHz
Highlight:

1 mH Inductance Wirewound Inductor

,

900mA Maximum DC Current Shielded Drum Core

,

Shielded Wirewound Inductor

7447709102 Integrated Circuit Chip 900mA Wirewound Inductor 1mH Shielded Drum Core
7447709102 Integrated Circuit Chip 900mA Wirewound Inductor 1mH Shielded Drum Core

7447709102 is a 1 mH Shielded Drum Core, 900mA WE-PD series Wirewound Inductor with 1.2Ohm Max Nonstandard resistance. The operating ambient temperature range for the WE-PD series of storage chokes at full current rating load is -40°C to +85°C.

Specifications
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 1 mH
Tolerance ±20%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 1.2Ohm Max
Frequency - Self Resonant 1MHz
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Key Features
  • Ultra low RDC and RAC
  • Core Material: NiZn
  • Operating temperature: -40°C to +125°C
  • AEC-Q 200 qualified
  • Automotive approved
Applications
  • Air conditioning, climate control units, ventilation, fan controls
  • Small motor drivers & wiper control systems
  • Car infotainment
  • Switching regulators and DC/DC converter with extremely high efficiency (>95%)
