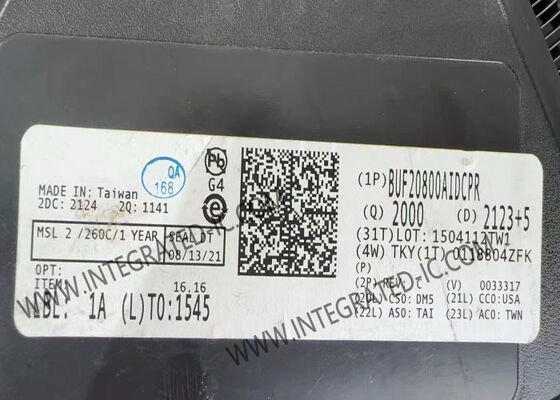

BUF20800AIDCPR Integrated Circuit Chip 18-Channel Gamma Voltage Generator with 10-bit Resolution and Programmable Vcom Channels

BUF20800AIDCPR Integrated Circuit Chip 18-Channel Gamma Voltage Generator with 10-bit Resolution and Programmable Vcom Channels
BUF20800AIDCPR Integrated Circuit Chip 18-Channel Gamma Voltage Generator with 10-bit Resolution and Programmable Vcom Channels BUF20800AIDCPR Integrated Circuit Chip 18-Channel Gamma Voltage Generator with 10-bit Resolution and Programmable Vcom Channels

Large Image :  BUF20800AIDCPR Integrated Circuit Chip 18-Channel Gamma Voltage Generator with 10-bit Resolution and Programmable Vcom Channels

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BUF20800AIDCPR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HTSSOP-38
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

BUF20800AIDCPR Integrated Circuit Chip 18-Channel Gamma Voltage Generator with 10-bit Resolution and Programmable Vcom Channels

Description
Part Number: BUF20800AIDCPR Number Of Channels:: 18 Channel, 2 Channel
Supply Voltage - Max:: 18 V, 5.5 V Supply Voltage - Min:: 7 V, 2 V
Minimum Operating Temperature:: - 40 C Maximum Operating Temperature:: + 95 C
Highlight:

18-Channel Gamma Voltage Generator

,

10-bit Resolution Integrated Circuit Chip

,

Programmable Vcom Channels Gamma Voltage Generator

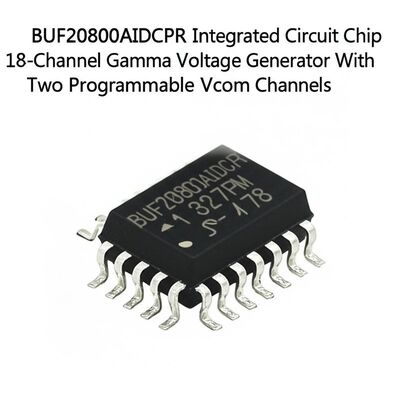

BUF20800AIDCPR Integrated Circuit Chip 18-Channel Gamma Voltage Generator With Two Programmable Vcom Channels
Product Description
The BUF20800AIDCPR is a programmable voltage reference generator designed for gamma correction in TFT-LCD panels. It provides 18 programmable outputs for gamma correction and two channels for VCOM adjustment, each with 10-bit resolution.
Specifications
Applications TFT-LCD Panels: Gamma Buffer, VCOM Driver
Output Type Rail-to-Rail
Number of Circuits 18
Current - Supply 18 mA
Current - Output / Channel 45 mA
Voltage - Supply, Single/Dual (±) 7V ~ 18V
Features
  • 18-channel gamma correction
  • 2-channel programmable VCOM:
    • 100mA output current
    • 10-bit resolution
  • Rail-to-rail output
  • Low power consumption: 900µA/channel
  • Supply voltage: 7V to 18V
  • Digital supply: 2.0V to 5.5V
  • Industrial standard two-wire interface:
    • 3.4MHz high-speed mode
  • High ESD immunity:
    • 4kV HBM
    • 1kV CDM
    • 200V MM
Applications
  • Replacement for resistive gamma correction solutions
  • TFT-LCD reference driver
  • Dynamic gamma control
