1ED020I12FA2 Automotive Isolated Single Channel IGBT Driver with 2A Output Current and 4500Vrms Isolation

1ED020I12FA2 Automotive Isolated Single Channel IGBT Driver with 2A Output Current and 4500Vrms Isolation

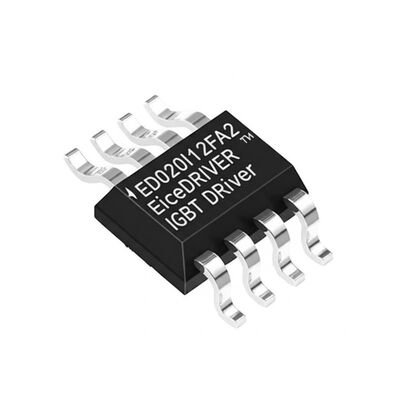

1ED020I12FA2 Automotive Isolated Single Channel IGBT Driver with 2A Output Current and 4500Vrms Isolation 1ED020I12FA2 Automotive Isolated Single Channel IGBT Driver with 2A Output Current and 4500Vrms Isolation

Large Image :  1ED020I12FA2 Automotive Isolated Single Channel IGBT Driver with 2A Output Current and 4500Vrms Isolation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 1ED020I12FA2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: DSO-20
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

1ED020I12FA2 Automotive Isolated Single Channel IGBT Driver with 2A Output Current and 4500Vrms Isolation

Description
Part Number: 1ED020I12FA2 Number Of Drivers:: 1 Driver
Number Of Outputs:: 1 Output Output Current:: 2 A
Supply Voltage - Min:: 4.5 V Supply Voltage - Max:: 20 V
Highlight:

Automotive IGBT Driver

,

2A Output Current IGBT Driver

,

4500Vrms Isolation IGBT Driver

1ED020I12FA2 Integrated Circuit Chip EiceDRIVER™ Automotive Isolated Single Channel IGBT Driver
Product Description
The 1ED020I12FA2 is a galvanic isolated single channel IGBT driver in PG-DSO-20 package that provides an output current capability of typically 2A. All logic pins are 5V CMOS compatible and can be directly connected to a microcontroller. The data transfer across galvanic isolation is realized by the integrated Coreless Transformer Technology. The 1ED020I12FA2 provides several protection features including IGBT desaturation protection, active Miller clamping, and active shut down.
Specifications
Number of Channels 1
Voltage - Isolation 4500Vrms
Rise / Fall Time (Typ) 30ns, 50ns
Current - Output High, Low 2A, 2A
Voltage - Output Supply 13V ~ 20V
Grade Automotive
Operating Temperature -40°C ~ 150°C (TJ)
Key Features
  • Single channel isolated IGBT Driver
  • For 600V/1200V IGBTs
  • 2 A rail-to-rail output
  • Vcesat-detection
  • Active Miller Clamp
Product Highlights
  • Coreless transformer isolated driver
  • Basic insulation according to DIN EN 60747-5-2
  • Basic insulation recognized under UL 1577
  • Integrated protection features
  • Suitable for operation at high ambient temperature
  • AEC Qualified
Applications
  • Drive inverters for HEV and EV
  • Auxiliary inverters for HEV and EV
  • High Power DC/DC inverters
