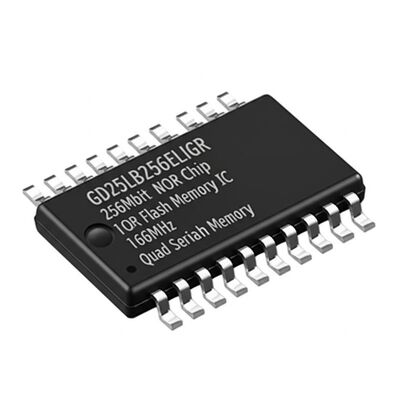

GD25LB256ELIGR 256 Mbit NOR Flash Memory IC with 166 MHz Quad SPI Serial Flash Memory

GD25LB256ELIGR 256 Mbit NOR Flash Memory IC with 166 MHz Quad SPI Serial Flash Memory
GD25LB256ELIGR 256 Mbit NOR Flash Memory IC with 166 MHz Quad SPI Serial Flash Memory GD25LB256ELIGR 256 Mbit NOR Flash Memory IC with 166 MHz Quad SPI Serial Flash Memory

Large Image :  GD25LB256ELIGR 256 Mbit NOR Flash Memory IC with 166 MHz Quad SPI Serial Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: GD25LB256ELIGR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WLCSP-32
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

GD25LB256ELIGR 256 Mbit NOR Flash Memory IC with 166 MHz Quad SPI Serial Flash Memory

Description
Part Number: GD25LB256ELIGR Product Type: NOR Flash
Memory Size: 256 Mbit Interface Type: SPI
Maximum Clock Frequency: 166 MHz Organization: 32 M X 8
Highlight:

256 Mbit NOR Flash Memory IC

,

166 MHz Serial Flash Memory

,

Quad SPI Memory IC Chip

GD25LB256ELIGR Memory IC Chip
256Mbit NOR Flash Memory IC with 166MHz Quad Serial Flash Memory
Product Overview
The GD25LB256ELIGR is a 256Mbit Serial Flash memory that supports standard Serial Peripheral Interface (SPI), Quad SPI, and DTR modes. It features Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), I/O3, and RESET# interfaces. The Quad output data transfers at 664Mbits/s, Quad I/O data at 532Mbits/s, and DTR Quad I/O data at 832Mbits/s.
Technical Specifications
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR (SLC)
Memory Size 256Mbit
Memory Organization 32M x 8
Memory Interface SPI - Quad I/O, QPI, DTR
Clock Frequency 166 MHz
Write Cycle Time 70µs (Word), 1.2ms (Page)
Access Time 6 ns
Voltage Supply 1.65V ~ 2V
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 32-XFBGA, WLCSP
Supplier Device Package 32-WLCSP
Key Features
  • 256M-bit Serial Flash (32M-Byte) with 256 Bytes per programmable page
  • Supports Standard SPI, Quad SPI, DTR, and QPI modes
  • High-speed clock frequency: 166MHz for fast read operations
  • Quad I/O Data transfer up to 532Mbits/s
  • QPI Mode Data transfer up to 532Mbits/s
  • DTR Quad I/O Data transfer up to 832Mbits/s
  • XIP (eXecute in Place) Operation capability
  • Fast Program/Erase Speed with optimized timing
  • Flexible architecture with 4K-Byte sectors and 32/64K-Byte blocks
  • Erase/Program Suspend/Resume functionality
  • Low power consumption: 20μA typical stand-by current, 2μA power-down current
  • Advanced security features including 128-bit Unique ID and 4K-Byte Security Registers with OTP Lock
  • Single power supply voltage: 1.65~2.0V full range
